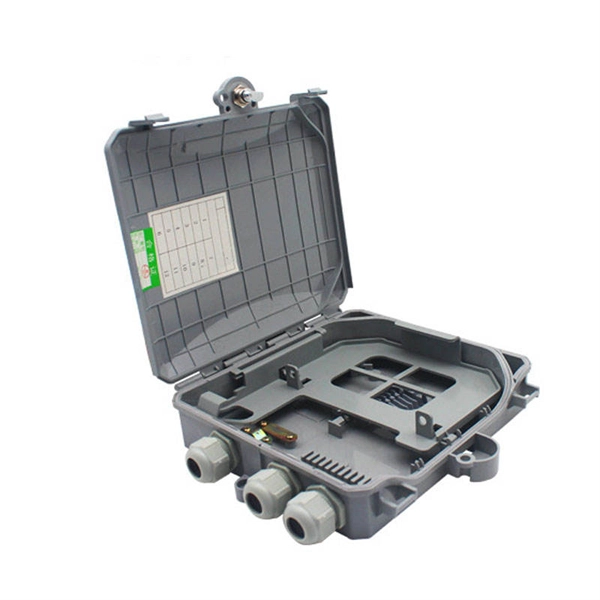

Outdoor wiring of distribution box

Proper wiring of an outdoor distribution box ensures safe, organized, and weatherproof electrical distribution for multiple circuits.

Choosing the Right Distribution Box

For outdoor use, select a weatherproof enclosure with an appropriate IP or NEMA rating to protect against rain, dust, and temperature extremes. Materials can be steel for durability or plastic for lighter applications, depending on environmental exposure. Ensure the box is sized to accommodate all circuit breakers, busbars, terminal blocks, and wiring, leaving space for heat dissipation and future expansion.

Installation Location

Install the box in a dry, accessible area at a convenient height (typically around 1. 5 meters) and away from water, flammable, or corrosive substances. Ensure it is securely mounted using expansion bolts or brackets, and that the enclosure is level and stable.

Wiring Preparation

Cut insulation to expose the correct length of conductor for terminals. Follow color coding: line (live), neutral, and ground wires must be connected to their respective terminals. Use proper wire gauge for the load and breaker rating.

Secure grounding to the earth bar to prevent electrical hazards.

Circuit Connections

Connect the main incoming power to the main switch or breaker. Distribute power to individual circuit breakers for each outgoing circuit. Use busbars for neutral and earth connections to maintain organized wiring.

Ensure all connections are tight and secure to prevent overheating or arcing.

Safety and Testing

Install circuit breakers, fuses, or surge protectors for each circuit. After wiring, perform insulation resistance tests and circuit on/off tests with a multimeter to verify proper operation. Label each circuit clearly for maintenance and troubleshooting.

Maintenance

Conduct regular inspections for loose connections, corrosion, or physical damage. Clean dust and debris annually, ensuring power is disconnected before cleaning. Test protective devices periodically to confirm correct operation.

By following these steps, an outdoor distribution box can safely distribute electricity to multiple circuits while remaining protected from environmental hazards and compliant with electrical codes.
