Fiber ODF Fusion Splicing Method

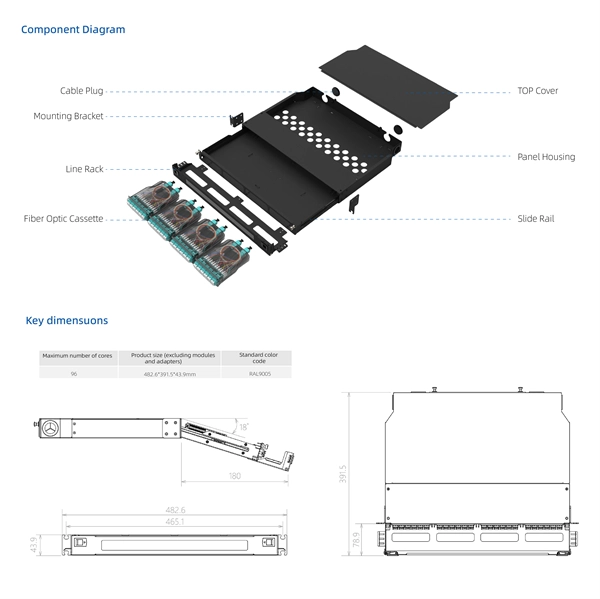

Fusion splicing is the preferred method for connecting fibers in high-density ODFs due to its low loss, high reliability, and space efficiency. Role of Fusion Splicing in ODFsOptical Distribution Frames (ODFs) are central to managing fiber connections in data centers and telecom networks. They allow for organized cross-connect cabling, efficient labeling, and traceability between servers, switches, and other network devices.

Fusion splicing is widely used in ODFs because it supports high-density deployments, enabling thousands of fiber connections within a compact footprint while maintaining low optical loss. Unlike connectors, which require two terminations per connection and can introduce higher insertion loss (0. 2–0.

5 dB), fusion splices typically achieve 0. 05–0. 1 dB loss and are sealed against contaminants and vibration.

Fusion Splicing Techniques

Fiber Preparation: Proper stripping of the fiber coating is critical. Bare fibers are usually 250 µm, while coated fibers are 900 µm. Controlled, uniform pressure is applied to avoid microfractures that can degrade splice quality.

Cleaning: Fiber ends must be cleaned thoroughly using lint-free wipes and 99%+ isopropyl alcohol. Contaminants like dust or oil can significantly increase splice loss. Cleaving: A precise cleave ensures a flat, perpendicular end face.

Ribbon cleavers allow multiple fibers to be cleaved simultaneously, improving throughput in dense installations. Splicing: Fibers are aligned in the V-grooves of the fusion splicer. Proper tension is maintained to avoid microbends or breakage, and core alignment is critical to minimize insertion loss.

Advantages of Fusion Splicing in ODFsHigh Density: Modern ODFs can accommodate 5,000+ fusion splices in a footprint under 3 ft², making them ideal for hyperscale data centers. Reliability: Splices are maintenance-free and resistant to vibration and contamination, unlike connectors which may require periodic inspection. Cost Efficiency: At scale, fusion splicing reduces the cost per termination compared to connectors, especially in large deployments.

Mass-

Fusion Splicing: Techniques like mass-fusion splicing allow multiple fibers to be spliced simultaneously, reducing installation time and improving optical link budgets.

Considerations for High-

Density Deployments

Circuit Identification: Using tracer fibers or labeling systems helps prevent errors during moves, adds, and changes (MACs) in dense ODFs. Automation and Specialty Fibers: Fusion splicing can be applied to specialty fibers such as polarization-maintaining, erbium-doped, or microstructured fibers, with increasing automation improving consistency and throughput. Maintenance: Even with fusion splicing, periodic inspection of splices and cleaning of fiber ends is recommended for optimal performance.

In summary, fiber fusion splicing in ODFs provides a scalable, reliable, and low-loss solution for modern high-density networks, making it the preferred method for hyperscale and enterprise data center deployments. Proper preparation, cleaning, cleaving, and alignment are essential to achieve optimal splice performance.
