How to categorize and display optical cables

Categorize optical cables by type, function, and destination, and display them using standardized labeling, color coding, and organized routing for clarity and maintenance efficiency. Categorization of Optical Cables1. By Fiber Type: Single-mode fiber (SMF): Typically used for long-distance, high-bandwidth applications; jacket color is yellow.

Multimode fiber (MMF): Used for shorter distances; jacket colors are orange (OM1/OM2) or aqua (OM3/OM4). 2. By Fiber Count: Cables can be 12-strand, 24-strand, or higher; this helps determine capacity and splicing requirements.

3. By Function or Service: Group cables by application such as voice, data, video, or security. Alternatively, categorize by source and destination, e.g., "Server Rack 12A to IDF-3".

4. By Installation Environment: Indoor vs. outdoor cables, or industrial vs. data center environments, which affects labeling materials and routing methods. Labeling and Display Methods1.

Labeling Standards: Follow TIA-606-B for consistent labeling, including cable ID, routing path, and installation date. Use alphanumeric codes like "FB-03-A142" to uniquely identify each cable. 2.

Color Coding: Use jacket colors for quick identification: yellow for single-mode, orange/aqua for multimode. Inside multi-fiber cables, follow a 12-color sequence for individual fibers to simplify splicing and termination. 3.

Label Types: Thermal transfer labels: Durable, fade-resistant, ideal for indoor installations. Heat-shrink tubing: Permanent, UV-resistant, suitable for outdoor or industrial environments. Wrap-around flags: Flexible for frequently changed cable paths but may loosen over time.

4. Placement: Place labels 3–6 inches from each endpoint and at midpoints for long runs. Ensure text orientation is readable from the equipment rack.

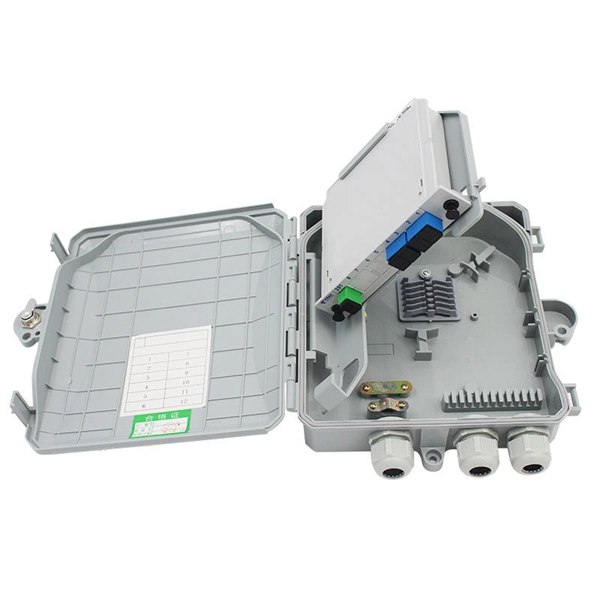

Routing and Organization

Use cable trays, ducts, clips, or ties to bundle and secure cables neatly. Avoid sharp bends, kinks, or crossing with power lines to maintain signal integrity. Group cables logically by service, destination, or zone to reduce clutter and simplify maintenance.

Documentation

Maintain a master spreadsheet or cable management software with all cable IDs, types, and routing paths. Update documentation whenever cables are added, removed, or reconfigured. Consider using QR codes linked to detailed records for quick access in modern data centers.

Best Practices

Conduct quarterly audits to verify label integrity and update records. Train staff on labeling standards and cable management procedures to ensure consistency. Choose durable materials appropriate for the environment to prevent label degradation.

By following these practices, optical cables can be clearly categorized, easily identified, and efficiently displayed, reducing downtime, simplifying maintenance, and improving overall network reliability.
