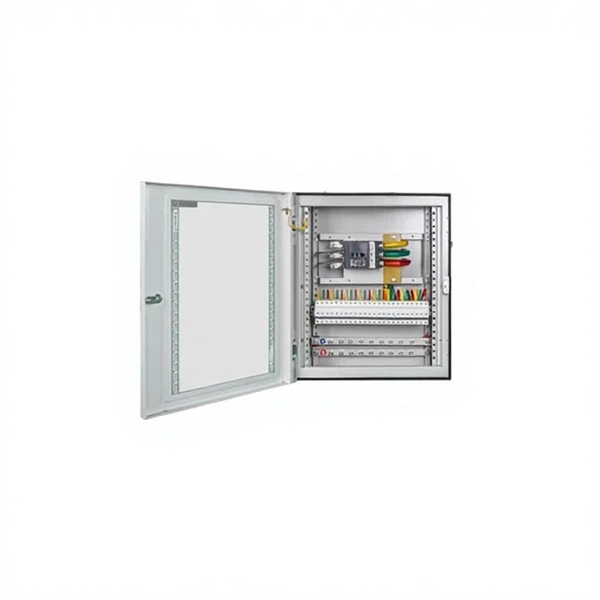

Correctly Connecting the Electrical Distribution Box on the Construction Site

Construction site distribution boxes should be connected using properly rated industrial connectors, grounded enclosures, and circuit-protected wiring following NEC or local codes.

Key Components and Setup

Distribution Box Selection: Choose a box suitable for construction environments, typically made of steel or durable plastic with an appropriate IP or NEMA rating to protect against dust, water, and impact ( ). Industrial-grade boxes often include circuit breakers, fuses, busbars, terminal blocks, and DIN rails for modular expansion ( ). Power Input Connection: Connect the main power supply to the distribution box using industrial plug sockets or CEE connectors, which are designed for heavy-duty, outdoor use and repeated connections ( ).

Ensure the input cable is rated for the maximum anticipated load and properly insulated. Circuit Protection: Install MCCBs (Molded Case Circuit Breakers) or MCBs (Miniature Circuit Breakers) for each branch circuit to protect against overloads and short circuits ( ). Surge protection devices are recommended for areas with unstable power.

Neutral and Grounding: Properly connect the neutral wire to the neutral busbar and ensure all metal parts, including the box itself, are grounded to prevent electric shock ( ). Grounding should comply with NEC or local standards. Branch Circuit Connections: Use terminal blocks or busbars to distribute power to multiple circuits.

Each outgoing cable should be securely connected, insulated, and routed neatly using cable ties or channels to prevent crossing or damage ( ). Load Distribution: Calculate the load for each circuit to avoid overloading. Connect machinery, lighting, and temporary equipment using compatible industrial plugs.

Ensure connectors are rated for outdoor use if exposed to weather ( ). Safety Checks: Before powering on, perform visual inspections and multimeter tests to verify correct wiring, tight connections, and proper grounding ( ). Only authorized personnel should remove covers or modify connections.

Maintenance and Labeling: Clearly label all circuits and maintain a clean, organized wiring layout. Schedule regular inspections to ensure long-term reliability and safety ( ).

Best Practices

Use IP67 or higher-rated connectors for outdoor exposure to prevent water ingress ( ). Keep wiring neat and avoid loose or crossed cables to reduce short-circuit risks ( ). Ensure all breakers and fuses are correctly rated for the connected load ( ).

Modular designs allow easy relocation and future upgrades ( ).

Follow NE

C, IEC, or local electrical codes and use certified components (UL, CE, CCC) ( ). By following these methods, construction site electrical distribution boxes can provide safe, reliable, and flexible power for temporary or industrial applications while minimizing hazards and downtime.
