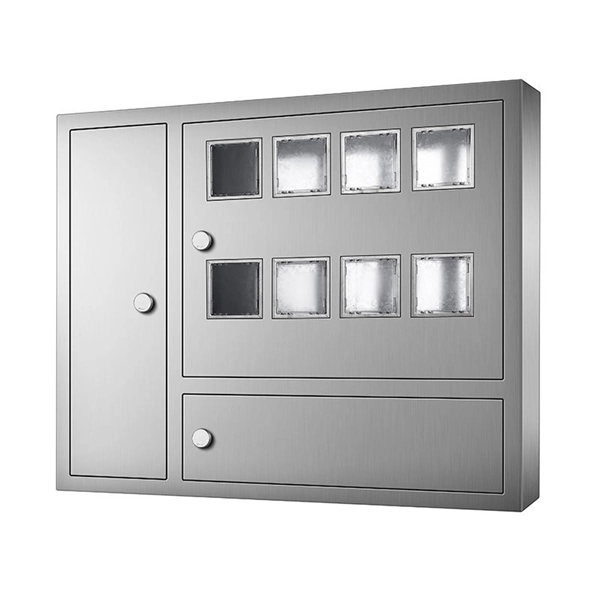

What are the functions of photovoltaics in distribution boxes

Photovoltaic distribution boxes manage, protect, and distribute DC power from solar panels to downstream circuits while ensuring system safety and efficiency.

Core Functions

Power Collection and Distribution: PV distribution boxes collect direct current (DC) electricity from multiple solar panel strings and route it to inverters or DC loads. They act as a central hub, organizing power flow to multiple circuits efficiently, which simplifies wiring and reduces voltage drop over long cable runs. Circuit Protection: These boxes house circuit breakers, fuses, and surge protection devices (SPDs) to safeguard each PV string against overcurrent, short circuits, and voltage spikes.

They prevent reverse current damage and isolate faulty strings to protect the entire system. Monitoring and Diagnostics: Advanced PV distribution boxes integrate intelligent monitoring systems that track individual string performance. This allows operators to detect underperforming or faulty strings without shutting down the entire system, optimizing energy harvest and maintenance efficiency.

Safety and Maintenance: Integrated DC disconnect switches enable technicians to safely isolate parts of the system during maintenance or emergencies. Some models include fire suppression devices to reduce risks from electrical faults. Environmental Protection: PV distribution boxes are designed for outdoor use, often with IP65 or IP67-rated enclosures made from corrosion-resistant materials.

They withstand extreme temperatures, moisture, and UV exposure, ensuring long-term reliability.

Additional Features

Fault Detection: Automatic isolation of problematic circuits while maintaining power flow from healthy strings. Modular Design: Supports various installation scales, from small residential rooftops to large commercial solar farms. Remote Communication: Some units allow wireless monitoring and diagnostics, enabling real-time system management.

Distinction from Combiner BoxesWhile a PV combiner box primarily aggregates multiple PV string outputs into a single DC feed for the inverter, the distribution box focuses on safely distributing power to multiple loads or circuits, often on the AC side, and providing monitoring and protection for each downstream connection. Both components are complementary in modern solar installations. In summary, photovoltaic distribution boxes are essential for efficient power management, safety, monitoring, and maintenance in solar energy systems, ensuring reliable operation across residential, commercial, and industrial applications.
