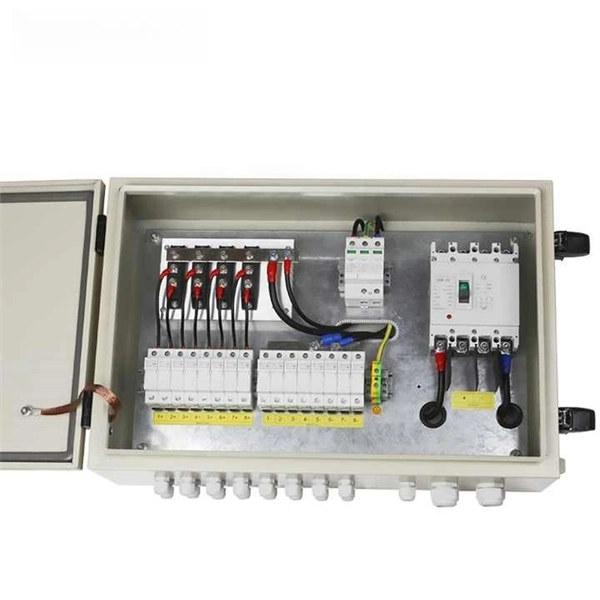

Distribution boxes cannot be connected to parallel lines

Distribution boxes should not be connected to parallel lines because doing so can create serious safety hazards, including overloading, fire risk, and non-compliance with electrical standards.

Electrical Hazards of Parallel Connections

Connecting distribution boxes in parallel, often attempted using jumper wires, is explicitly prohibited by national standards. When a main line is split to feed multiple breakers in parallel, the first wire carries the combined current of all downstream circuits. Subsequent wires also carry overlapping currents, which can exceed their rated capacity, leading to overheating, insulation damage, and potential fire hazards.

This improper current distribution can also cause uneven loading, reducing the efficiency and safety of the electrical system.

Regulatory and Code Compliance

National and international electrical codes, such as NEC and IEC standards, require that each circuit in a distribution box be connected individually to the main supply or busbar. Parallel connections violate these codes because they create multiple paths for current that are not properly rated or balanced. In subpanels, for example, neutral and ground wires must remain separate, and any parallel or jumper connections can compromise grounding effectiveness, increasing the risk of electric shock and equipment damage.

Proper Installation Practices

To ensure safety and compliance: Use individual connections: Each circuit breaker should be connected directly to the main busbar without jumpers. Select appropriate wire sizes: Wires must be rated for the maximum expected current of each circuit. Avoid damaged or substandard cables: Only use certified, undamaged conductors to prevent overheating and faults.

Follow manufacturer guidelines: For specialized systems like hybrid or parallel inverter setups, follow the specific wiring rules to avoid misoperation and hazards. Include protective devices: Circuit breakers, fuses, and surge protectors should be installed for each circuit to prevent overloads and short circuits.

Conclusion

Connecting distribution boxes to parallel lines is unsafe because it can lead to overloaded conductors, fire hazards, and non-compliance with electrical codes. Proper installation requires individual connections for each circuit, correct wire sizing, and adherence to national and manufacturer standards to ensure both safety and reliable operation.
