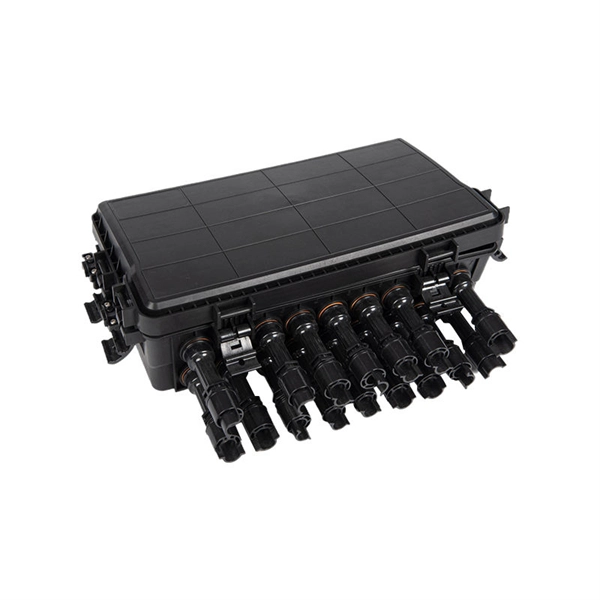

What is used for fiber splicing in fiber distribution boxes

Fiber splicing in distribution boxes is performed using fusion or mechanical splices, typically organized and protected within fiber splice trays.

Splicing Methods

Fusion Splicing: This method uses a fusion splicer to weld two fiber ends together with an electric arc, creating a permanent, low-loss, and highly reliable connection. It is the preferred method for singlemode fibers and long-distance networks due to minimal signal loss and high durability. Mechanical Splicing: This method aligns fiber ends using a mechanical device and an index-matching gel or adhesive.

It is faster and easier to perform in the field but generally results in slightly higher signal loss and is less permanent than fusion splicing. Mechanical splicing is often used for multimode fibers or temporary restorations.

Fiber Splice Trays

Fiber splice trays are essential components inside fiber distribution boxes. They: Hold and protect individual splices from bending, pulling, or crushing forces. Organize fibers to maintain proper bend radius and prevent signal degradation.

Accommodate different splice types, with dedicated trays for fusion or mechanical splices. Provide labeling and management for clear identification of fiber connections. Most trays can hold 12 to 24 splices, with larger enclosures stacking multiple trays to support higher fiber counts, such as 96-core or 144-core configurations.

Fiber Distribution Boxes

Fiber distribution boxes (or splice closures) serve as protective enclosures for spliced fibers. They: Shield splices from environmental factors like dust, moisture, and mechanical stress. Provide space for splice trays and excess fiber management.

Enable organized routing of feeder and drop cables in FTTx or backbone networks.

Splicing Process in Distribution Boxes

Strip the fiber jacket using a fiber stripper to expose the bare fiber. Clean the fiber ends with lint-free wipes and isopropyl alcohol. Cleave the fibers with a precision cleaver to create smooth, perpendicular end faces.

Align and splice the fibers using either a fusion splicer or mechanical splice connector. Place the spliced fibers into the splice tray for protection and organization. By combining proper splicing techniques with fiber splice trays inside distribution boxes, networks achieve low signal loss, high reliability, and long-term stability.
