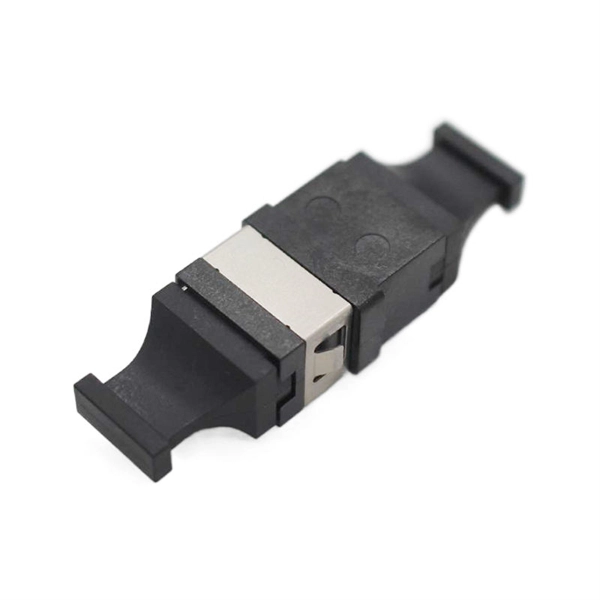

Optical Module Single-Mode Optical Film

Single-mode optical modules use fibers with a small core to transmit light in a single path, enabling long-distance, high-bandwidth communication with minimal signal loss.

Overview of Single-

Mode Optical FibersSingle-mode optical fibers are designed to carry only one transverse mode of light, which minimizes modal dispersion and allows signals to travel long distances with high fidelity. The core diameter is typically 9 µm, surrounded by a 125 µm cladding, which ensures that light propagates in a straight path without interference from multiple modes. This structure contrasts with multimode fibers, which have larger cores (50–62.

5 µm) and support multiple light paths, making them suitable for short-range applications but prone to signal degradation over longer distances. Optical Module ApplicationsSingle-mode fibers are commonly used in optical modules such as SFP, QSFP, and CFP transceivers for long-haul, metropolitan, and carrier networks. These modules typically operate at 1310 nm or 1550 nm wavelengths, optimized for low attenuation and compatibility with Dense Wavelength Division Multiplexing (DWDM) systems.

Single-mode modules are ideal for distances ranging from several kilometers to tens of kilometers, depending on the transceiver type, such as 10GBASE-LR or 100G-LR4.

Advantages of Single-

Mode Fibers

High bandwidth and long reach: Minimal modal dispersion allows data to travel farther without signal degradation. Compatibility with DWDM: Supports multiple wavelengths on a single fiber for high-capacity networks. Lower bulk fiber cost: While transceivers are more expensive, the fiber itself is generally cheaper in bulk.

Technical Considerations

Core and cladding: Single-mode fibers have a pure silica core with a slightly higher refractive index than the cladding, sometimes doped with fluorine to reduce photodarkening and improve UV performance. Mode field diameter (MFD): Determines how light spreads in the fiber and affects coupling efficiency with optical modules. Connector types: Common connectors include LC, SC, and MPO/MTP for high-density applications.

Comparison with Multimode FibersFeatureSingle-ModeMultimodeCore diameter9 µm50–62. 5 µmLight pathsSingleMultipleDistanceLong-haul (km)Short-range (m)Modal dispersionMinimalHigherTypical wavelength1310/1550 nm850/1300 nmCostHigher transceiver costLower transceiver costSingle-mode optical modules are preferred for carrier, campus, and long-haul backbone networks, while multimode modules are more cost-effective for data centers and short-range links. In summary, single-mode optical fibers in optical modules provide efficient, long-distance, high-bandwidth transmission, making them essential for modern telecommunications and high-capacity network infrastructures.
