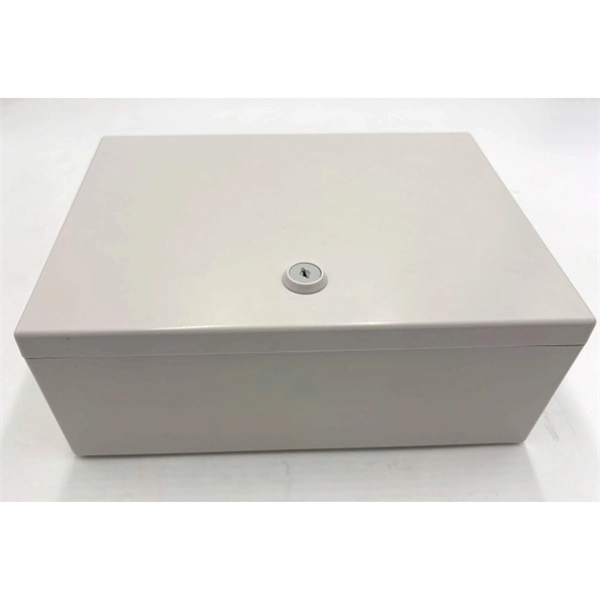

Switches inside the explosion-proof distribution box

Switches in explosion-proof distribution boxes are typically located on the front panel or inside the enclosure, operated via handles, pushbuttons, or control levers, and integrated with circuit breakers and control devices. Front Panel and Internal PlacementExplosion-proof boxes are designed with modular enclosures that house switches, circuit breakers, and control devices in a safe, flameproof environment. Main switches and branch switches are usually mounted on the front panel, allowing operators to control circuits without opening the enclosure, which maintains the explosion-proof integrity.

Pushbuttons, selector switches, and emergency stop buttons are also positioned on the front for easy access while keeping the internal components sealed. Inside the box, switches are connected to terminal blocks, bus bars, and relays, ensuring proper distribution of power and control signals. The internal layout is designed to prevent sparks or arcs from escaping, with switches often enclosed in separate chambers or flameproof wells.

This arrangement allows safe operation of MCCBs, MCBs, AC contactors, thermal relays, and other control devices.

Operation Mechanisms

Handles and levers: Some boxes use metal handles for main or branch switches, which can be padlocked for safety. Pushbuttons and selector switches: These are mounted on the front panel and may control start, stop, forward, reverse, or emergency functions. Integrated meters and indicators: Ammeters, voltmeters, and pilot lights are often placed alongside switches to monitor circuit status.

Safety Considerations

Switches in explosion-proof boxes are certified for hazardous environments and must not be modified. Unauthorized changes can compromise safety and void certifications. The enclosure ensures that all switching operations occur without exposing sparks or arcs to the surrounding atmosphere, maintaining compliance with IEC, ATEX, or local explosion-proof standards.

In summary, switches are primarily on the front panel for operational access, while internally they are connected to the distribution and control circuitry within flameproof compartments, ensuring both functionality and safety in hazardous environments.
