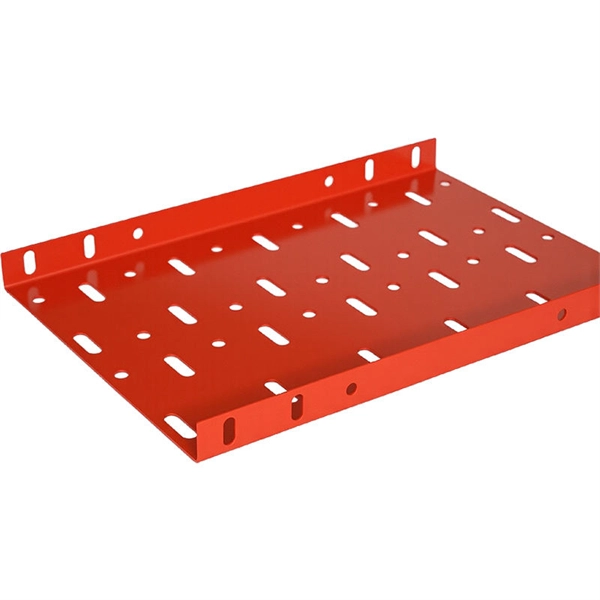

Distribution box switch bracket

Switch distribution box brackets are mounting supports designed to securely attach switch or distribution boxes to studs, walls, or ceilings, accommodating various box sizes and installation types.

Overview

Switch distribution box brackets are essential for mounting electrical switch boxes or distribution panels in residential, commercial, or industrial settings. They provide stability, ensure proper alignment, and simplify installation, whether the boxes are flush-mounted, surface-mounted, or installed in cavity walls. Brackets are available in adjustable, telescoping, or fixed designs to fit different stud widths and box sizes.

Types of Brackets

Telescoping Brackets: Adjustable to fit a range of stud spacings, such as Eaton's BBT-HF and BBT-WF brackets, which can accommodate 4”, 4-11/16”, and 5” electrical boxes. These brackets snap onto alignment supports like BBA, BBA-2, or BBA-4 for easy installation. Fixed Mounting Brackets: Simple metal or plastic brackets that attach directly to studs or walls, suitable for single-gang or multi-gang boxes.

Cavity Wall Brackets: Designed for hollow walls, these brackets often include press-out membranes or plaster adjustment rings to ensure proper alignment and energy-efficient installation.

Installation Considerations

Stud Compatibility: Brackets can be used with metal or wood studs, and some are adjustable for wide flange or structural studs. Box Size: Ensure the bracket supports the intended box size (commonly 4”, 4-11/16”, or 5” for standard switch boxes) and depth (e.g., 1-1/2” to 2-1/8”) for proper fit. Indoor vs Wet Areas: For humid or wet environments, use IP-rated junction boxes (IP54 or IP65) with compatible brackets to maintain safety and compliance.

Ease of Installation: Many brackets feature snap-on designs or telescoping adjustments to reduce installation time and maintain alignment during drywall or ceiling work.

Accessories

Additional accessories may include spring covers, screws, and alignment rings to facilitate installation and ensure a secure, flush finish. Multi-gang brackets like BBA-MG allow mounting of multiple boxes in a single assembly, which is useful for complex switch panels or distribution setups. Where to BuyMcMaster-Carr: Offers a wide selection of electrical box brackets and mounting adapters.

Amazon: Provides adjustable bar brackets and switch mounting brackets for various box sizes and stud types. Eaton: Specializes in telescoping and multi-gang box supports for professional installations. Kopp: Supplies switch boxes, junction boxes, and compatible mounting accessories for indoor and wet-area applications.

Using the correct switch distribution box bracket ensures secure, code-compliant installations and simplifies future maintenance or upgrades.
