How to splice fiber optic cables into finished pigtails

Splicing fiber optic cables and pigtails is best done using fusion splicing for a permanent, low-loss connection, with proper preparation, alignment, and testing.

Understanding Fiber Pigtails

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs into equipment or an optical distribution frame (ODF), while the bare end is spliced to the incoming fiber cable. Pigtails are preferred over patch cords for field terminations because they allow precise factory-polished connectors to be fused to bulk fiber runs, minimizing signal loss and back reflection.

Tools and Equipment Needed

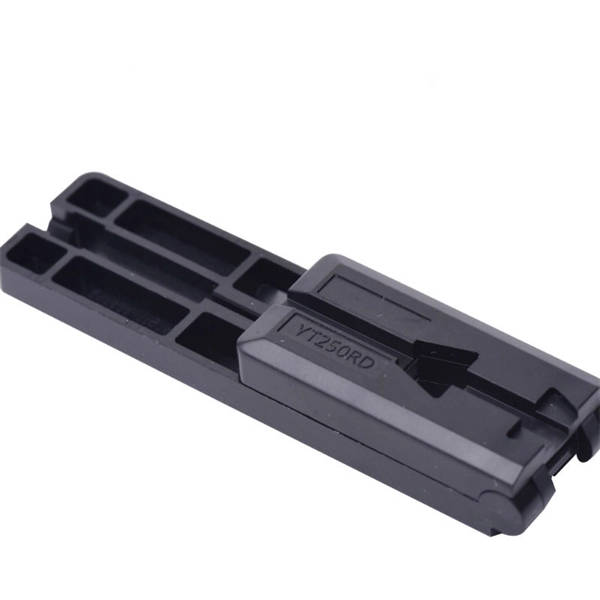

To perform a professional splice, you will need: Fusion splicer for permanent splicingFiber cleaver to cut fibers cleanlyStripping tools to remove the fiber coatingIsopropyl alcohol wipes for cleaningPigtails and patch cordsProtective sleeves for the spliceOptional mechanical splice kit for temporary or quick connections Step-by-Step Fusion Splicing ProcessPrepare the Fiber: Strip the protective coating from the fiber, clean it with alcohol, and ensure no dust or debris remains. Cleave the Fiber: Use a fiber cleaver to create a flat, perpendicular end on both the incoming fiber and the pigtail. Align the Fibers: Place the fibers in the fusion splicer.

The machine aligns the cores precisely to ensure minimal signal loss. Fuse the Fibers: The splicer uses an electric arc to melt and join the fiber ends, creating a continuous optical path. Protect the Splice: Slide a protective sleeve over the splice and shrink it using a heat source to prevent damage.

Test the Connection: Use an optical power meter or OTDR to verify low insertion loss and proper signal transmission. Mechanical Splicing (Alternative Method)Mechanical splicing is a temporary or quick method where fibers are aligned in a gel-filled sleeve. It is faster but typically has slightly higher loss (~0.

3 dB) compared to fusion splicing (~0. 1 dB). Mechanical splices are useful for short-term connections or emergency repairs.

Best Practices

Always keep fibers clean; even small dust particles can cause high loss. Use factory-polished pigtails rather than field-terminated connectors to improve reliability. Ensure proper alignment in the splicer to minimize back reflection.

Label and organize splices in a splice tray for easy maintenance. Test all splices before finalizing the installation to ensure network performance. By following these steps and using the right tools, you can achieve low-loss, reliable fiber optic connections suitable for data centers, FTTH deployments, and telecom networks.
