ODF fiber optic splicing

ODF fiber optic splicing involves joining optical fibers within an organized Optical Distribution Frame to ensure minimal signal loss and secure network connections.

Overview of ODF Splicing

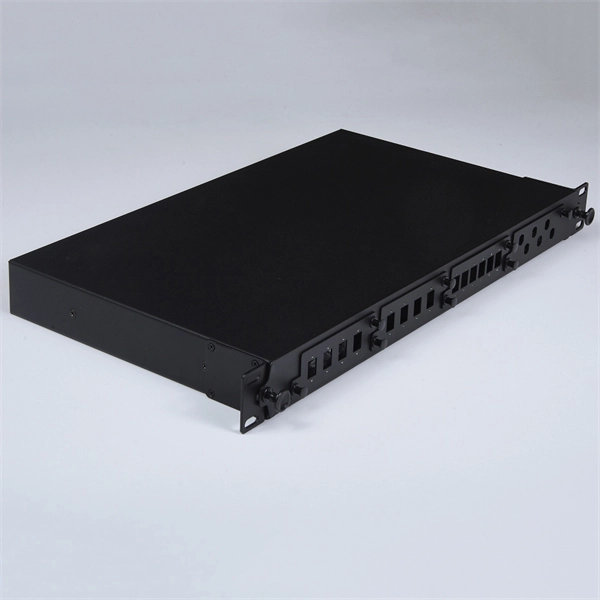

An Optical Distribution Frame (ODF) is a structured panel used to manage and protect fiber optic connections. Splicing within an ODF allows technicians to permanently join fibers while keeping the network organized and accessible for maintenance or expansion.

OD

F splicing is commonly used in telecom networks, data centers, and enterprise backbones. Steps for Splicing Fiber Optics in an ODFCable PreparationStrip the outer jacket of the fiber optic cable carefully. Remove the buffer coating to expose the bare fiber.

Clean the fiber with isopropyl alcohol to remove dust and debris.

Fiber Alignment and Splicing

Fusion Splicing: Align fibers precisely using a fusion splicer, then fuse them with controlled thermal energy to create a continuous optical path with minimal signal loss. Mechanical Splicing: For temporary or multimode connections, fibers are aligned in a mechanical splice holder with index-matching gel to reduce reflection and loss.

Splice Protection

Place the spliced fiber into a protective sleeve to prevent mechanical damage. Secure the sleeve within the ODF tray to maintain organization and prevent bending beyond the fiber's minimum bend radius.

ODF Management

Route fibers neatly within the ODF, using trays and guides to avoid tangling. Label each fiber for easy identification and future troubleshooting.

Testing and Verification

Use an optical power meter or OTDR (Optical Time-Domain Reflectometer) to verify splice quality. Ensure low insertion loss and minimal back reflection before closing the ODF panel.

Best Practices

Always work in a clean environment to prevent contamination. Maintain the minimum bend radius to avoid signal degradation. Use high-quality cleavers and splicers for precise fiber alignment.

Document all splices and fiber routes for future maintenance. ApplicationsODF splicing is essential for: Extending long-haul fiber runs. Connecting multiple fiber cables in data centers or telecom networks.

Repairing damaged fiber optic cables. Organizing high-density fiber networks for easy management. By following these steps and best practices, technicians can achieve reliable, low-loss fiber connections within an ODF, ensuring optimal network performance and long-term stability.
