How to determine which line the fiber optic cable belongs to

You can identify a fiber optic cable line by examining the cable's jacket color, print legend, connector type, and using tracing tools like optical fiber identifiers or OTDRs. 1.

Check the Jacket Color

Fiber optic cables often follow standardized color codes to indicate their type: Single-mode fibers: YellowMultimode OM1 & OM2: Orange or grayMultimode OM3 & OM4: Aqua (OM4 may also be heather violet)Multimode OM5: Lime green These colors provide a quick visual cue for the fiber type, but they may vary if the manufacturer uses custom colors, so always verify with the print legend. 2.

Examine the Print Legend

Most fiber cables have a printed legend along the jacket that provides critical information: Fiber type (e.g., SM for single-mode, MMF for multimode)Core/cladding size (e.g., 50/125 µm for OM2/OM3/OM4, 62. 5/125 µm for OM1)Cable construction (e.g., duplex, armored, direct burial)Jacket rating (e.g., OFNR, FT4)Manufacturer and part number For example, a print legend reading SSF 2 FIBER MMF (50/125) SSF-S250BIF-OM3 DUPLEX OFNR FT4 indicates a multimode OM3 fiber with 50/125 µm core/cladding, duplex construction, and OFNR-rated jacket. Checking the print legend is often the most reliable way to identify the cable line.

3.

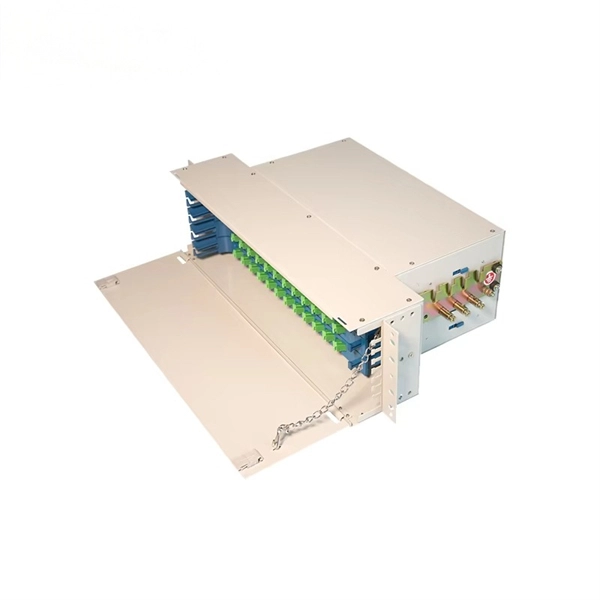

Inspect the Connector Type

Connector types can also help identify the fiber line: LC: Small form-factor connectorSC: Square connectorST: Round, bayonet-type connectorFC: Ferrule connectorMTP/MPO: Multi-fiber push-on for high-density applications Connector type, combined with fiber type, can narrow down the cable's intended use and network assignment. 4.

Use Tracing and Testing Tools

To confirm which line a cable belongs to, technicians often use: Optical fiber identifiers: Detect live signals without disconnecting the cableOTDR (Optical Time-Domain Reflectometer): Measures distance, identifies faults, and matches cable IDs to network records These tools allow you to trace the cable to its endpoints and verify its network assignment, especially in complex installations. 5.

Maintain Documentation

Always cross-reference the cable's print legend, color code, and test results with network documentation. Labeling systems following TIA-606-B standards help maintain accurate records, reduce errors, and simplify future maintenance. By combining visual inspection, print legend reading, connector identification, and signal tracing, you can accurately determine which fiber optic cable line a specific cable belongs to.
