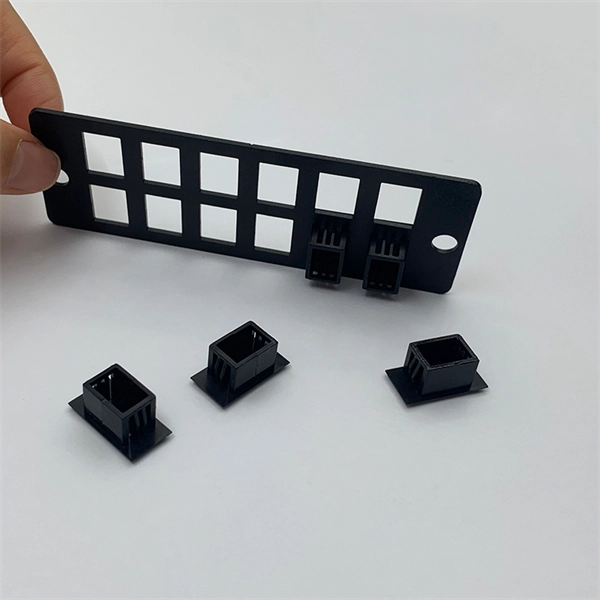

Methods for binding and securing electrical wires in distribution boxes

Electrical wires in distribution boxes should be secured using clamps, cable ties, and proper connectors to ensure safety, prevent accidental disconnection, and maintain code compliance.

Securing Wires in Plastic and Metal Boxes

Plastic boxes often come with built-in clamps or tabs that hold wires securely. To use them, insert the cable through the clamp so that at least 1/4 inch of sheathing is inside the box, and the cable extends about 1/2 inch past the clamp to prevent insulation damage. Some clamps have a spring mechanism that grips the wire as it is pushed through, ensuring a firm hold.

For metal boxes, wires are typically secured using metal clamps or connectors that also provide grounding when using metal-sheathed cables.

Wire Preparation and Connection

Before securing wires, always turn off power and verify with a non-contact voltage tester. Strip insulation carefully from each conductor, usually about 5/8 to 3/4 inch, depending on the connector specifications. Use wire nuts or approved connectors to join conductors, ensuring a tight, stable connection that minimizes resistance and heat buildup.

Proper identification of hot, neutral, and ground wires is essential for safety.

Bundling and Organizing Wires

To maintain neatness and prevent tangling, use cable ties, bundling wraps, or wiring ducts. These devices provide mechanical support and help position wires within the box or panel, reducing strain on connections and improving airflow.

UL and CS

A standards specify that cable ties and fixing devices must meet certain safety requirements for electrical installations.

Additional Best Practices

Ensure the box size is adequate for the number and gauge of wires to prevent overcrowding, which can cause overheating. For metal-sheathed wiring, ensure proper grounding by bonding to the metal box. Plastic boxes require separate grounding measures.

Avoid sharp bends or kinks in wires, and maintain a minimum bend radius to prevent insulation damage. For outdoor or damp locations, use weatherproof boxes and secure wires to prevent water ingress. By combining proper clamps, connectors, and cable management devices, electrical wires in distribution boxes can be safely secured, organized, and maintained according to electrical codes and best practices.
