ODF fiber optic cable splicing

Fiber optic splicing in an ODF involves precise alignment of fibers, using either fusion or mechanical splicing, and organized placement in splice trays to ensure minimal signal loss and efficient network management.

Splicing Methods

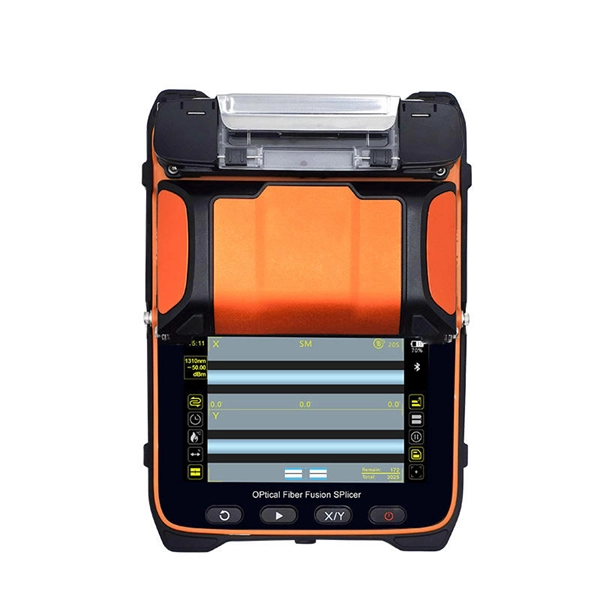

Fusion Splicing: This method uses a splicing machine to weld two fiber ends together with an electric arc. It provides low insertion loss (~0. 1 dB) and minimal back reflection, making it ideal for long-distance singlemode cables.

Fusion splicing requires careful preparation: stripping the cable jacket, cleaning and cleaving the fibers, and using a fusion splicer to align and fuse the fibers. After splicing, a splice protector is applied, usually by heat shrinking, to safeguard the joint. Mechanical Splicing: Mechanical splices align fibers using a clamp and index-matching gel to reduce loss and reflection.

Typical losses are around 0. 3–0. 5 dB.

Mechanical splicing is simpler, requires fewer specialized tools, and is often used for multimode fibers or temporary connections. It allows for quick installation and easy disconnection if needed. Using an Optical Distribution Frame (ODF)An ODF is used to organize and manage fiber splices and connections.

Key steps include: Cable Preparation: Strip the outer jacket and buffer tubes to expose the fibers. Clean and cleave fibers before splicing. Splice Placement: Insert spliced fibers into splice trays within the ODF.

Trays protect the splices and maintain proper bend radius to prevent signal loss. Labeling and Documentation: Label each fiber and splice for easy identification. Document splice counts, locations, and test results for network maintenance.

Testing: Use an OTDR (Optical Time-Domain Reflectometer) or optical power meter to verify splice quality, measure loss, and detect bends or breaks.

Best Practices

Always handle fibers carefully to avoid contamination or breakage. Dispose of fiber scraps safely. Maintain minimum bend radius in ODF trays to prevent attenuation.

Follow manufacturer and local standards for splice closures, ODF installation, and safety procedures. Use high-quality cleavers and splicers and calibrate equipment regularly for consistent results. By following these methods and organizing splices properly in an ODF, technicians can ensure efficient, low-loss fiber optic networks that are easy to maintain and expand.
