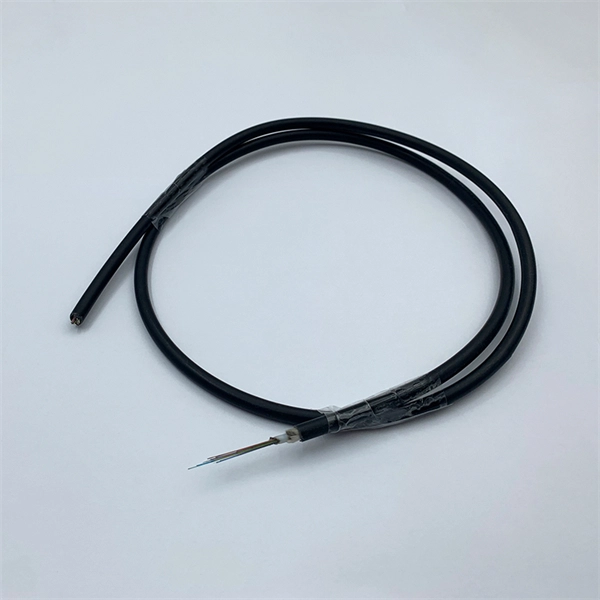

Patch Cords and Fiber Optic Terminal Boxes

Fiber optic patch cords connect network devices, while terminal boxes organize, protect, and manage fiber connections.

Fiber Optic Patch Cords

Patch cords are pre-terminated fiber optic cables used to connect devices, patch panels, or terminal boxes. They come in various types: Singlemode (OS1/OS2): For long-distance, high-bandwidth applications. Multimode (OM1, OM2, OM3, OM4, OM5): For shorter distances, typically in data centers or LANs.

Connector types: LC, SC, ST, MTP/MPO, and APC/UPC variants for compatibility with different equipment. Patch cords can be simplex (single fiber) or duplex (two fibers), and are available in indoor, outdoor, armored, or breakout configurations for specific environments.

Fiber Optic Terminal Boxes

Terminal boxes (also called termination boxes or enclosures) provide a secure, organized location for fiber connections. They serve multiple purposes: Protection: Shield fibers from physical damage, dust, and environmental factors. Organization: House patch cords, pigtails, and splices neatly.

Connectivity: Facilitate easy connection between backbone cables and patch cords via adapter panels. Types of Terminal BoxesRack-Mount Enclosures: Fit standard 19-inch racks, ideal for data centers; available in 1U to 4U sizes with sliding or swing-out designs for easy access.

Wall-

Mount Enclosures: Compact, suitable for small spaces or edge networks; can be single or double door, with integrated splice trays and adapter plates.

Outdoor/

Harsh Environment Boxes: Weatherproof, NEMA-rated, or dome enclosures for outdoor installations, protecting fibers from rain, dust, and temperature extremes. Splice Trays: Inside enclosures, these trays organize and protect fiber splices, supporting 12, 24, or more fibers.

Adapter Panels

Adapter panels inside terminal boxes allow easy connection between patch cords and backbone fibers. They support multiple fiber types and connector configurations, including LC, SC, ST, and MTP/MPO, and can be singlemode or multimode.

Applications

Data Centers: High-density fiber management and cross-connects. Telecommunications: Central offices and network backbones.

FTT

H (Fiber to the Home): Distribution boxes for residential or commercial fiber networks.

Industrial/

Outdoor Networks: Rugged enclosures for harsh environments.

Summary

In essence, patch cords provide the flexible connections, while fiber optic terminal boxes ensure organized, protected, and accessible fiber management. Choosing the right combination depends on fiber type, connector type, network density, and environmental conditions. Proper selection enhances network reliability, simplifies maintenance, and supports high-performance data transmission.
