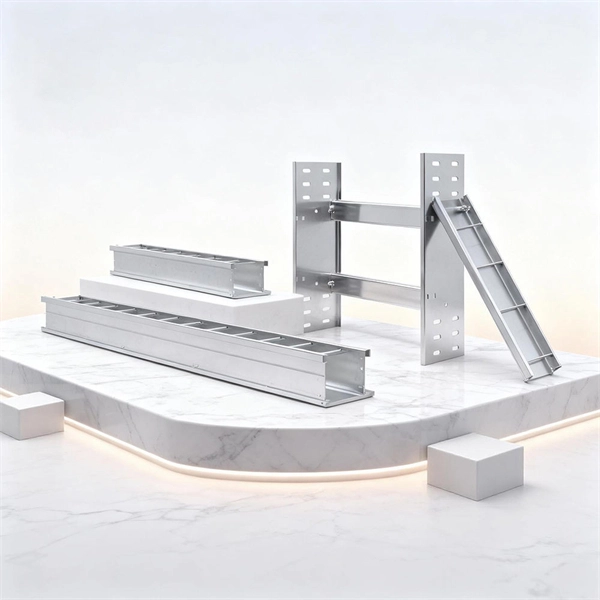

Wiring control rack for distribution box

Installing a wiring rack in a distribution box involves securely mounting the rack, preparing and connecting wires, and organizing them neatly for safety and maintenance. Step 1: Prepare the Distribution BoxPlace the distribution box on a stable surface or mount it on the wall at an accessible height (typically 1. 5 meters for residential setups) and ensure it is level and secure.

If installed outdoors, use a waterproof enclosure and consider adding a rain cover to prevent water ingress. Leave sufficient space around the box for ventilation and future maintenance. Step 2: Mount the Wiring RackMost distribution boxes include a DIN rail or wiring rack for mounting circuit breakers, terminal blocks, and other components.

Align the wiring rack inside the enclosure and secure it using screws or clips provided by the manufacturer. Ensure it is firmly fixed and level to prevent movement during wiring. Step 3: Prepare the WiresCut the insulation of each wire to expose the conductor, leaving an appropriate length for connection.

Follow standard color coding: line (live) wires to line terminals, neutral wires to neutral terminals, and ground wires to ground terminals. Use a wire stripper to remove insulation cleanly without damaging the conductor. Step 4: Connect ComponentsInstall circuit breakers or other devices onto the wiring rack.

Connect each wire to its designated terminal, ensuring a tight and secure connection. Use screws or terminal clamps to fasten wires, and double-check that each connection matches the intended circuit layout. Step 5: Organize and Secure WiresRoute all wires neatly along the wiring rack, avoiding tangling or contact with sharp edges.

Use cable ties or wire ducts to secure wires and maintain a clean layout. Leave space for heat dissipation to prevent overheating. Step 6: Testing and VerificationBefore powering on, perform the following checks: Insulation Resistance Test: Measure resistance between wires and the box to ensure proper insulation.

Circuit On/

Off Test: Use a multimeter to verify that each circuit operates correctly without short circuits. Component Verification: Confirm that all breakers, fuses, and terminals are correctly installed and rated for the intended load. Step 7: LabelingLabel each circuit clearly on the wiring rack or inside the box.

This facilitates future maintenance, troubleshooting, and ensures compliance with safety standards. By following these steps, the wiring rack in a distribution box will be installed safely, neatly, and in compliance with standard electrical practices.
