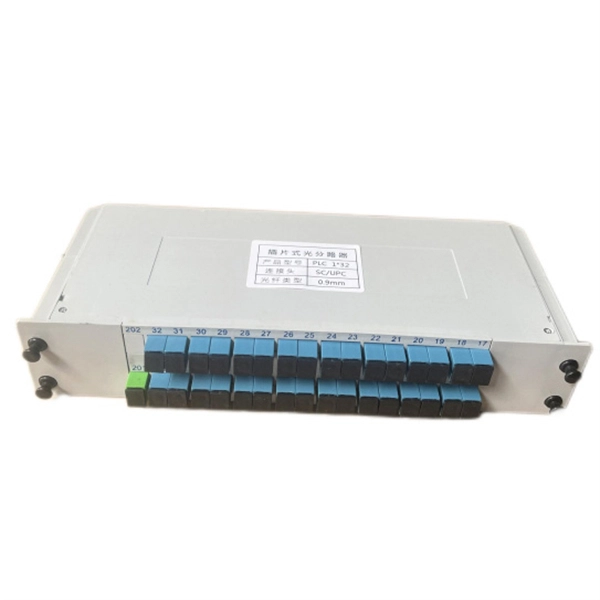

Fiber Optic Cable Junction Box Fusion

Fusion splicing in a fiber optic junction box involves careful preparation, precise cleaving, splicing with a fusion splicer, and secure placement of fibers to ensure low-loss, durable connections. 1.

Safety and Workspace Preparation

Before starting, ensure personal protection: wear high-rated safety goggles and cut-resistant gloves to prevent injury from glass shards. Use anti-static mats or wrist straps to protect sensitive splicer electronics. Verify that the fusion splicer is clean, electrodes are in good condition, and power supply is stable.

2.

Cable and Fiber Preparation

Strip the outer jacket of the fiber optic cable using a cable slitter, exposing the buffer tube. Strip the fiber coating carefully (typically 250µm for single-mode fibers) without bending or twisting the fiber. Recommended strip length is 10–20 mm depending on the splicer specifications.

Clean the fiber ends with lint-free wipes soaked in 99%+ isopropyl alcohol, wiping from the coating edge to the cleave tip in a single stroke. Use a fiber cleaning pen for stubborn residues. 3.

Fiber Cleaving

Use a precision fiber cleaver to create a flat, mirror-like end face. Inspect under a microscope or the splicer's built-in camera to ensure no chips, scratches, or contamination. A poor cleave can cause high splice loss or failure.

4.

Fusion Splicing

Open the fusion splicer's clamps and place each fiber in the V-groove, ensuring proper alignment. Close the clamps gently; do not force the fiber. Initiate the fusion arc to weld the fibers together.

The splicer will automatically align and fuse the fibers, creating a continuous optical path with minimal reflection and attenuation. Inspect the splice using the splicer's loss estimation or microscope to confirm quality. 5.

Protecting the Splice

Slide a splice protection sleeve over the fused fiber and heat-shrink it using the splicer's heater or a separate oven. This provides mechanical protection and strain relief. 6.

Organizing Fibers in the Junction BoxCarefully place the spliced fibers into the junction box trays, following the manufacturer's routing guidelines to maintain proper bend radius (>30 mm) and avoid stress on the fibers. Secure the fibers with clips or holders inside the box to prevent movement. Seal the junction box according to specifications to protect against environmental factors such as moisture, dust, and temperature changes.

7.

Final Checks

Verify all splices for low insertion loss and proper alignment. Ensure the junction box is fully closed and labeled for future maintenance. Dispose of fiber scraps safely in a dedicated fiber waste container.

Following these steps ensures high-performance, durable fiber optic connections within a junction box, minimizing signal loss and maintaining network reliability.
