Fiber Optic Panel for Low Voltage Distribution Box

Proper installation of a fiber optic panel in a low voltage distribution box requires careful mounting, cable routing, and strain relief to protect fragile fibers and ensure reliable network performance. Step 1: Prepare the Distribution BoxBefore installation, ensure the low voltage distribution box or fiber distribution housing (FDH) is ready to receive the panel. Remove any previously installed panels and verify that the mounting rails or brackets are in place.

Determine the correct orientation of the box based on your network layout and accessibility needs. Step 2: Handle the Fiber Optic PanelFiber optic panels can be heavy or awkward to handle. Use two-person lifting procedures to remove the panel from packaging.

Remove plastic coverings and untie any bundled cables, carefully rolling them out in a Figure-8 pattern to prevent twists or kinks. Avoid exceeding the minimum bend radius and do not apply excessive pulling force, as fibers are fragile and can be damaged by bending, crushing, or tension. Step 3: Mount the PanelPlace the panel on the bottom rail or designated mounting location inside the distribution box.

If using a low-profile panel, you may need to remove existing brackets and attach extension brackets. Secure the panel according to the manufacturer's instructions, ensuring it is stable and level. Step 4: Introduce Fiber Optic CablesFeed the fiber optic cables into the box through the cable inlet using a suitable grommet to protect the cable.

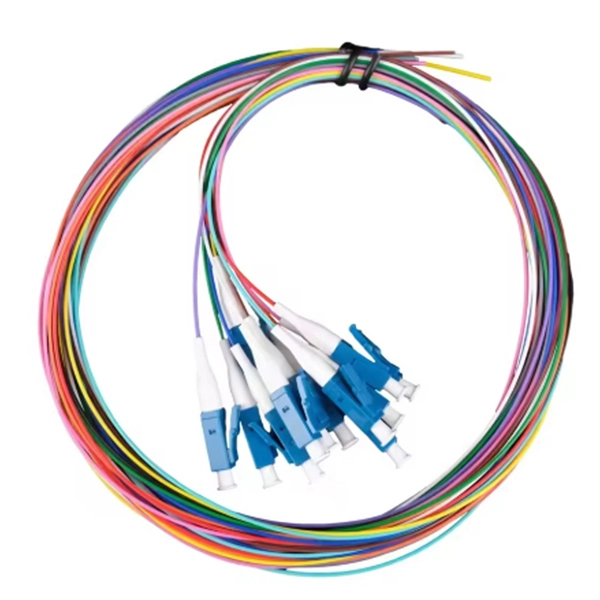

Use pre-terminated branch fiber jumpers or pigtails as needed. Ensure that the cable length allows the front panel to be fully extended without placing tension on the fibers; typically, a minimum of 31 inches of slack is recommended. Step 5: Route and Manage CablesInside the box, use bending radius control clips, spools, and cable ties to guide and secure the fibers.

Avoid sharp bends and maintain proper separation between fibers to prevent signal loss. Movable cable ties can be used to adjust routing as needed. Ground the cables according to local codes and company standards.

Step 6: Final ChecksAfter installation, verify that all fibers are properly seated in adapters, strain relief brackets are secured, and no cables are under tension. Confirm that the panel is accessible for future maintenance and that the fiber paths are organized for high-density management.

Best Practices

Plan the cable pathways in advance to avoid congestion and ensure compliance with conduit fill guidelines. Use single-mode or multi-mode fiber according to distance and network requirements. Always follow manufacturer instructions for mounting, grounding, and cable handling.

Label all fibers and adapters for easy identification and troubleshooting. By following these steps, you can ensure a safe, organized, and reliable installation of a fiber optic panel within a low voltage distribution box.
