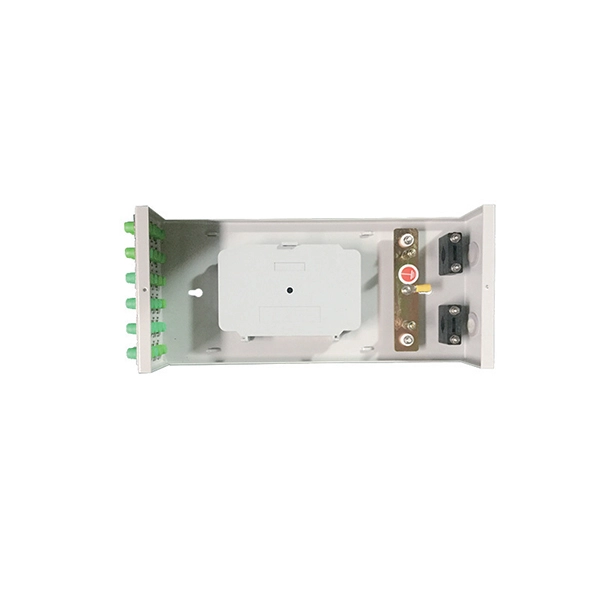

What fiber optic cable tray is used in an optical distribution box

Fiber optic distribution boxes typically use internal fiber splice trays or adapter trays to organize, protect, and manage optical fibers.

Overview

In an optical distribution box (ODB), the fiber optic cable tray serves as the main internal component for managing fiber connections. These trays are designed to hold, protect, and organize fibers, ensuring proper bending radius and preventing damage during installation or maintenance. They are essential for splicing, terminating, and distributing fibers efficiently within the box.

Types of Fiber Trays

Splice Trays

Used to accommodate fusion or mechanical splices of optical fibers. Provide organized storage for excess fiber length and pigtails. Can be stacked or mounted at angles (e.g., 45°) to optimize space in high-density boxes.

Commonly designed for 12, 24, or more fibers depending on the ODB capacity. Adapter Trays / Patch TraysUsed to mount fiber adapters (SC, LC, ST, FC, etc.) for direct connector termination. Maintain organized routing of fibers from incoming cables to outgoing connections.

Often integrated with splice trays in compact designs for combined splicing and patching.

Installation Considerations

Trays are typically modular, allowing for expansion as network demands grow. They are designed to maintain the minimum bend radius of fibers, preventing signal loss or damage. Some trays are compatible with both indoor and outdoor ODBs, providing protection against dust, moisture, and mechanical impact.

Wall-mounted or rack-mounted ODBs may use removable or slide-out trays for easier access during maintenance. Practical ApplicationsFTTH (Fiber-to-the-Home): Compact splice trays for small wall-mounted boxes. Data Centers / Telecom Rooms: High-density adapter trays in rack-mounted ODBs.

Outdoor Networks: Weatherproof trays in IP65-rated boxes for GPON or 5G networks. In summary, the fiber optic cable tray in an optical distribution box is usually a splice tray or adapter tray, designed to organize, protect, and facilitate efficient fiber management for both indoor and outdoor network applications.
