How to determine the distance to an optical module

The transmission distance of an optical module is determined by its wavelength, fiber type, optical power, and module class, rather than the data rate alone.

Key Factors Affecting Optical Module Distance

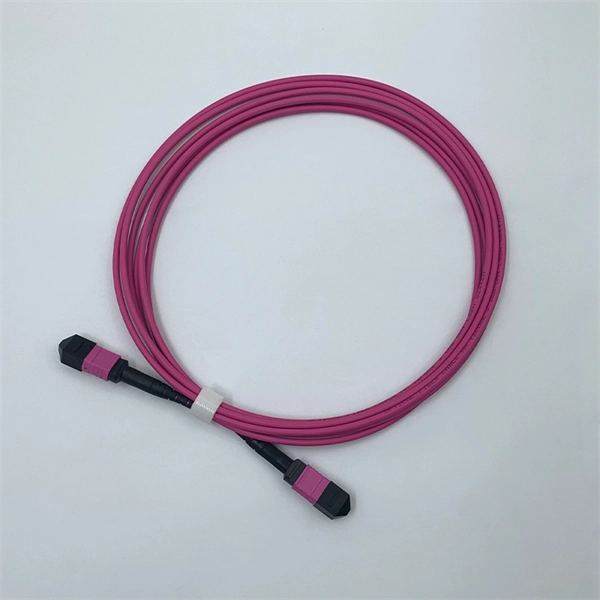

Wavelength and Fiber Type Optical modules operate at specific wavelengths that correspond to either multimode fiber (MMF) or single-mode fiber (SMF). Modules at 850nm or 910nm are typically multimode and support shorter distances (generally under 500 meters), while 1310nm or 1550nm modules are single-mode and can reach several kilometers. The fiber type also matters: OM3, OM4, and OM5 multimode fibers have different maximum distances due to modal dispersion and bandwidth-distance product.

Module Class and Designation Modules are often labeled as SR (Short Reach) or LR (Long Reach).

S

R modules are optimized for short distances over multimode fiber, typically 100–300 meters depending on fiber grade and data rate.

L

R modules are designed for long distances over single-mode fiber, commonly supporting 10–20 km, with some extended variants reaching 40–80 km. Optical Power and Loss Budget The effective distance also depends on the transmitter power, receiver sensitivity, and fiber attenuation. Optical power is usually expressed in milliwatts (mW) or decibels-milliwatt (dBm).

Calculating the distance requires considering the total loss along the fiber, including internal fiber loss and external factors like connectors or splices. Data Rate and Dispersion While higher data rates can increase modal dispersion in multimode fibers, the distance is primarily determined by optical characteristics, not Ethernet speed. For example, a 2.

5G SFP module can achieve similar reach as a 1G module if the optical design is equivalent.

Practical Steps to Estimate Distance

Check the module specifications for wavelength, fiber type, and power budget. Identify the fiber type in your network (MMF or SMF) and its grade (OM3, OM4, OM5). Calculate the link budget: subtract expected fiber loss and connector loss from the transmitter power to ensure the received signal is above the receiver sensitivity.

Consider environmental factors such as temperature, bending, or splicing, which can reduce effective distance. Classification by DistanceOptical modules are often categorized as short, medium, or long distance. Short-distance modules are typically under 500 meters, medium-distance modules cover a few kilometers, and long-distance modules can exceed 30 km, sometimes using specialized lasers like DFB or EML to reduce chromatic dispersion.

By combining these factors—wavelength, fiber type, module class, and optical power—you can accurately determine the expected transmission distance of an optical module and select the appropriate module for your network requirements.
