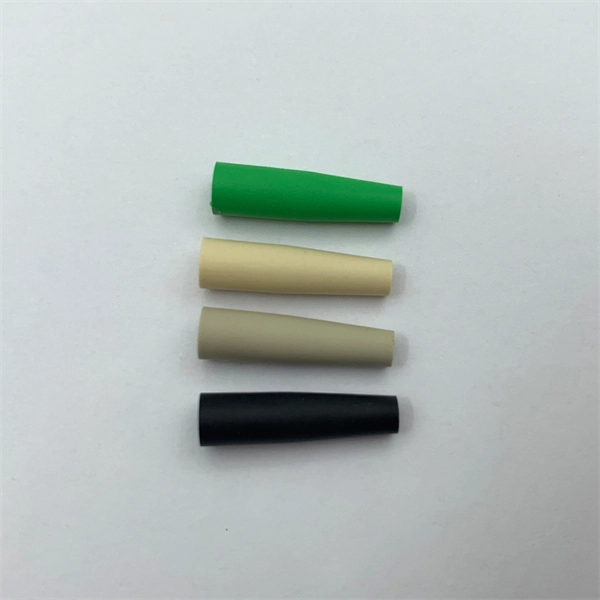

Fiber Optic Connector Plug Base

A fiber optic connector plug base is the mechanical interface that aligns and secures optical fibers for efficient light transmission between cables or devices.

Overview

A fiber optic connector plug base serves as the foundational component of a fiber optic connector, providing precise alignment of the fiber cores to minimize signal loss and reflection. Unlike permanent splicing, connectors allow for easy connection and disconnection, making them essential for network maintenance, upgrades, and flexible configurations.

Key Components

Ferrule: The cylindrical tip that holds the fiber in place, typically made of ceramic, stainless steel, or plastic. It ensures precise alignment with the mating fiber.

Housing/

Body: Encases the ferrule and provides structural support. It often includes a latch or push-pull mechanism for secure attachment.

Boot/

Strain Relief: Protects the fiber from bending or stress at the connector interface. Coupling Mechanism: Enables the plug to mate with a receptacle or adapter, such as push-pull (SC), latch (LC), or twist-lock (ST) designs. Common Connector TypesSC (Subscriber Connector): Square-shaped, push-pull coupling, widely used in FTTH and data centers.

SC/APC variants reduce return loss for sensitive applications.

L

C (Lucent Connector): Miniaturized version of SC with a 1. 25mm ferrule, ideal for high-density setups. Uses a latch mechanism similar to RJ45 plugs.

S

T (Straight Tip): Round, bayonet-style twist-lock connector, common in legacy networks.

F

C (Ferrule Connector): Screw-on type, often used in high-vibration environments. MPO/MTP: Multi-fiber connectors for high-density applications, supporting multiple fibers in a single plug.

Applications

Fiber optic plug bases are used in: Telecommunications: Connecting optical lines in central offices and FTTH networks. Data Centers: High-density patch panels and transceiver connections. Industrial and Military: Environments requiring ruggedized connectors with environmental resistance.

Accessories and Adapters

Plug bases often interface with receptacles or adapters, which allow cables to pass through panels or extend lengths while maintaining alignment. Adapters may include environmental shielding for dust and moisture protection. Understanding the plug base and its compatibility with connectors, adapters, and equipment is critical for ensuring low insertion loss, minimal return loss, and reliable network performance.
