Fiber Optic Cable Signal Attenuation Test Standard

Fiber optic cable attenuation testing is standardized by IEC 60793-1-40, TIA-568. 3-D, and FOA procedures, using OLTS or LSPM for precise measurement at specified wavelengths. Key StandardsIEC 60793-1-40: 2024 establishes uniform requirements for measuring optical fiber attenuation, including methods for spectral attenuation, backscattering, and point discontinuity characterization for single-mode fibers.

TIA-568. 3-D specifies maximum allowable attenuation for different fiber types and applications, such as 10GBASE-SR multimode fiber with a maximum channel insertion loss of 2. 9 dB over 400 meters, and 100GBASE-SR4 with 1.

5 dB. It also defines testing wavelengths: 850 nm and 1300 nm for multimode fibers, 1310 nm and 1550 nm for single-mode fibers, with optional 1625 nm for microbending detection.

FO

A Guidelines (OFSTP-7 for single-mode, OFSTP-14 for multimode) align with TIA and IEC standards, providing practical procedures for field testing, including unidirectional and bidirectional measurements, polarity verification, and documentation.

Testing Methods

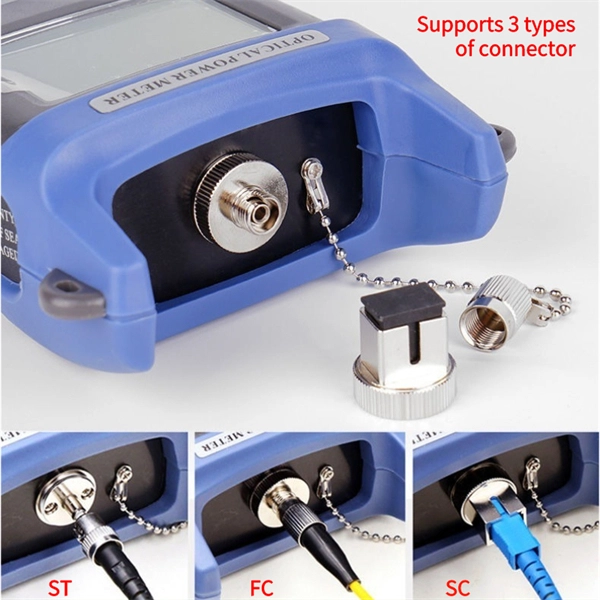

Optical Loss Test Set (OLTS) / Light Source and Power Meter (LSPM): Measures total link attenuation and length, providing the most accurate characterization of the fiber system.

Optical Time-

Domain Reflectometer (OTDR): Detects faults, splice and connector losses, and measures fiber length, complementing OLTS testing but not replacing it. Visual Fault Locator (VFL): Confirms continuity and polarity, identifies breaks or bends in the fiber.

Testing Procedures

Tier 1 Testing (Required): Includes link attenuation, link length, and polarity check. Testing should be performed at the operational wavelength(s) of the network, with unidirectional testing as a minimum and bidirectional testing recommended for higher accuracy. Tier 2 Testing (Optional): OTDR traces for splice and connector loss, fault location, optical return loss, and detailed documentation.

Reference Planes

Permanent Link: Includes installed fiber and two end connections; excludes equipment cords. Channel: Includes fiber, connections, splices, and attenuation between equipment cords and installed cabling.

Additional Considerations

Return Loss: Minimum for single-mode fiber has increased to 35 dB to improve network reliability. Polarity and Fiber Mapping: Must follow TIA-568. 3-D visual symbols to avoid connection errors, especially with MPO connectors.

Bend Radius and Tensile Load: Standards specify minimums to prevent damage during installation. By following these standards and procedures, technicians can ensure accurate attenuation measurements, reliable network performance, and compliance with industry best practices.
