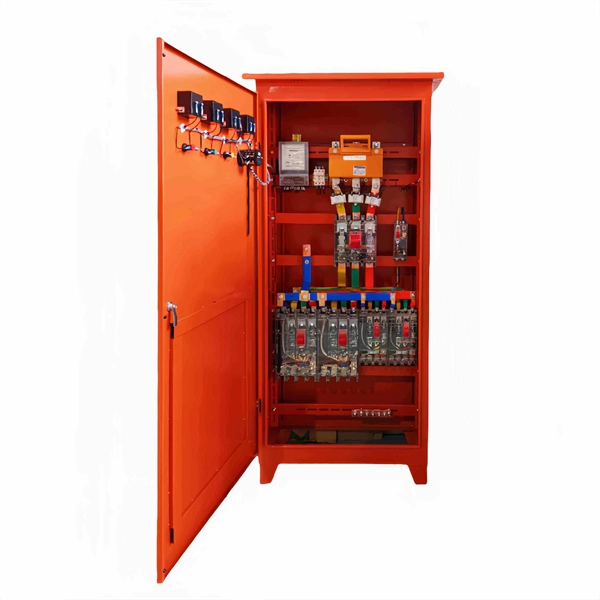

Short-circuit relay protection for power transmission lines

Short-circuit relay protection ensures rapid detection and isolation of faults on transmission lines to maintain system stability and prevent equipment damage.

Purpose of Relay Protection

Protective relays are intelligent devices designed to detect abnormal conditions, such as short circuits, overloads, or voltage imbalances, and initiate corrective actions like tripping circuit breakers to isolate the faulted section of the transmission line. Their main goal is to safeguard equipment (transformers, generators, and lines) while maintaining system reliability and minimizing disruption to healthy parts of the grid.

Types of Relay Protection for Short Circuits

Overcurrent Protection: Operates when current exceeds a preset threshold due to a short circuit. It is simple and widely used as both main and backup protection. Distance (Impedance) Protection: Measures the impedance of the line to detect faults within a defined zone.

It is fast and selective, commonly used for high-voltage transmission lines. Differential (Line) Protection: Compares currents at both ends of a line. Any difference indicates a fault, providing highly selective protection, often requiring communication channels.

Directional Overcurrent Protection: Adds directionality to overcurrent relays, ensuring correct tripping for faults in the intended line section.

High-

Frequency or Pilot Protection: Uses high-frequency signals to compare phase angles or power direction at both ends of the line, enabling rapid fault clearance without time delay.

Protection Zones and Coordination

Transmission lines are divided into protection zones, with relays assigned to detect faults within their zone. Main protection operates first to clear faults quickly, while backup protection acts if the main relay or breaker fails. Proper coordination ensures that only the faulted section is isolated, preventing unnecessary outages and preserving system stability.

Automatic Reclosing

For transient faults, automatic reclosing devices restore power by re-closing the breaker after a short delay. If the fault is permanent, the breaker trips again, isolating the line while maintaining supply to healthy sections.

Working Principle

A typical short-circuit relay system uses current transformers (CTs) to monitor line current. When a short circuit occurs, the current rises sharply, activating the relay. The relay then closes its contacts, sending a trip signal to the circuit breaker to isolate the faulted line.

Numerical relays now integrate multiple protection functions, improving speed, selectivity, and reliability. SummaryShort-circuit relay protection is essential for rapid fault detection, selective isolation, and system stability. Modern schemes combine overcurrent, distance, differential, and pilot relays with automatic reclosing and backup logic to ensure fast, reliable, and coordinated protection of high-voltage transmission lines.
