Laying optical cables along pipelines

Laying optical cables in pipelines involves careful planning, pipeline preparation, cable handling, and installation using standardized techniques to ensure long-term reliability and minimal signal loss.

Planning and Preparation

Before installation, the route of the pipeline must be inspected and mapped, including identification of manholes, bends, and sub-ducts. The pipeline should be cleaned and conditioned to remove debris, dust, or moisture that could damage the cable during installation. A security and safety plan must be established, including checking for toxic gases and ensuring compliance with local regulations and standards.

Cable and Pipeline Preparation

Drum conditioning: Optical cables are stored on drums and must be conditioned to prevent tangling or damage during installation. Sub-tube selection: Each optical cable is assigned a sub-tube of the same color, which is inserted through the pipeline before laying the cable. Unused sub-tube openings are sealed with plugs to prevent contamination.

Pipeline cleaning: The interior of the pipeline and manholes should be cleaned, and interfaces between sub-pipes and main ducts wrapped with PVC tape to prevent sand or debris infiltration.

Laying the Cable

Manual or mechanical traction: The cable is typically pulled from the middle toward both ends to reduce tension and prevent joint loss. Personnel are stationed at manholes to assist with traction and guidance. Support and fixation: In manholes, cables are fixed either on supporting plates or expansion bolts if no plate is present.

This ensures stability and prevents sagging or damage. Cable loops: Locations for cable loops are pre-identified in manholes to allow for future maintenance or splicing.

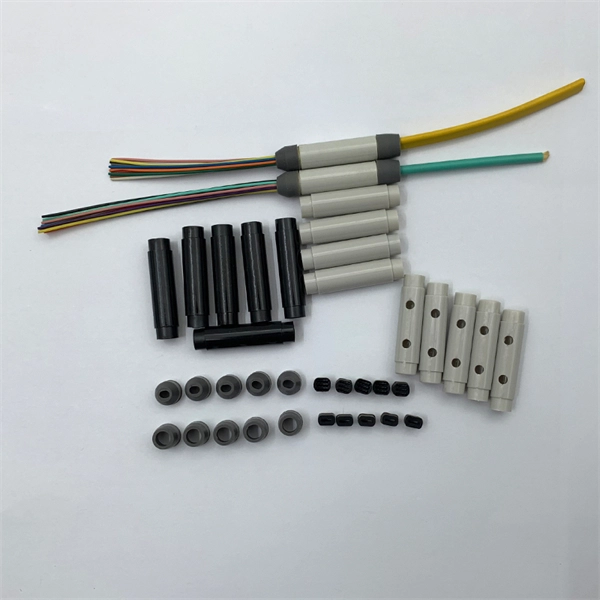

Splicing and Connections

After laying, splices and connections are performed according to the design plan. This includes using splice boxes, distributors, and guide elements to protect the fiber and maintain signal integrity. Proper cleaning and finishing of splices are essential to avoid signal loss.

Supervision and Quality ControlPre- and post-installation supervision ensures that the cable is laid according to design specifications and standards. Traction force monitoring: Excessive pulling can damage fibers, so careful monitoring is required during installation. Documentation: All steps, including cable sections, splices, and protective measures, should be recorded for future reference and maintenance.

Standards and Best Practices

Optical cables for pipeline installations should comply with ANSI/ICEA standards for outdoor and indoor-outdoor applications, ensuring durability under environmental stress and pipeline conditions. Proper installation practices, including careful handling, pipeline conditioning, and adherence to standards, are critical for long-term performance and reliability. By following these steps—planning, pipeline preparation, careful cable handling, proper laying, splicing, and supervision—optical cables can be successfully installed in pipelines with minimal risk of damage and optimal operational performance.
