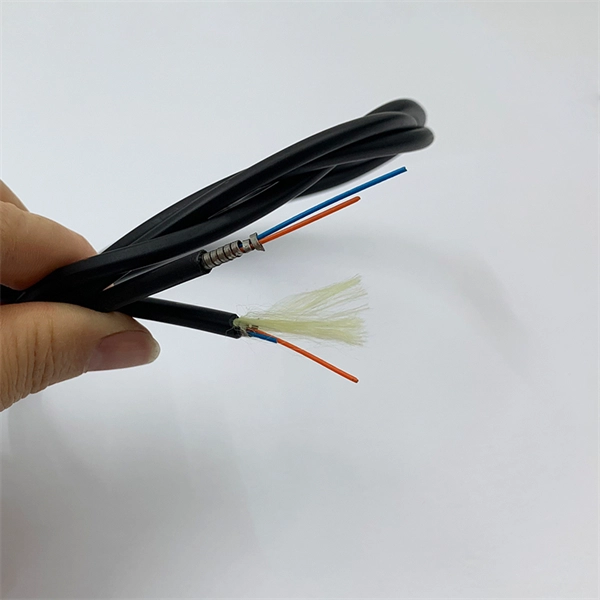

Wireless IP Panel Fiber Optic Cable

Wireless IP panels can be effectively integrated with fiber optic networks using patch panels, media converters, and structured cabling to ensure high-speed, long-distance, and interference-free connectivity.

Fiber Optic Patch Panels

Fiber optic patch panels are central components for organizing and managing fiber connections. They accommodate various connector types such as LC, SC, and MTP/MPO, and can be modular or fixed, supporting both singlemode and multimode fibers. Patch panels often include splice trays for fiber termination and protection, and they can be mounted in standard 19" racks, with heights ranging from 1U to 2U depending on capacity.

These panels are essential for data centers, enterprise networks, and telecom installations, providing a scalable and organized solution for fiber management.

Connecting Wireless IP Panels

Wireless I

P panels, such as security or access control systems, typically use Ethernet for communication. To connect these devices over long distances or between buildings, fiber-to-Ethernet media converters are used. These devices convert electrical Ethernet signals to optical signals and vice versa, allowing wireless IP panels to communicate over fiber while maintaining electrical isolation and preventing interference.

Fiber connections can extend up to 160 km depending on the transceiver and fiber type, far exceeding the 100-meter limit of copper Ethernet cables.

Fiber Types and Transceivers

Fiber optic cables come in singlemode (OS1, OS2) and multimode (OM1, OM2, OM3, OM4) varieties. Singlemode is ideal for long-distance outdoor applications, while multimode is suitable for shorter indoor runs. Optical transceivers, such as SFP, SFP+, QSFP+, and BiDi modules, allow wireless IP panels to interface with fiber networks.

Hot-pluggable transceivers enable modular network designs, supporting upgrades without downtime.

Benefits of Fiber Integration

Integrating wireless IP panels with fiber optic networks provides several advantages: Extended range: Fiber supports much longer distances than copper Ethernet. Electrical isolation: Prevents interference and protects devices from surges. High bandwidth: Supports high-speed data transfer for multiple IP devices.

Scalability: Modular patch panels and transceivers allow easy network expansion.

Summary

To deploy wireless IP panels over fiber, use structured cabling with fiber patch panels, appropriate connectors, and media converters. Choose fiber type and transceivers based on distance and bandwidth requirements. This setup ensures reliable, high-speed, and interference-free communication for security, surveillance, or enterprise networking applications.
