Cableing in a network rack and its cost

Cabling a network rack involves structured cable management, proper equipment placement, and can cost between $500 and $3,000 per rack depending on complexity and materials.

Cable Management in Network Racks

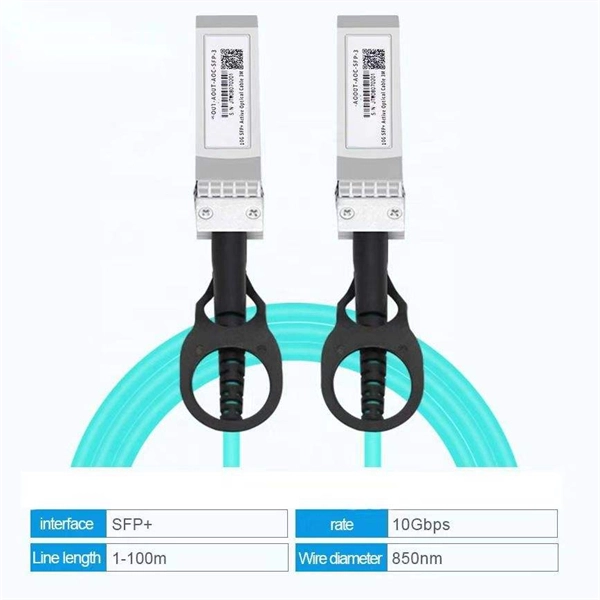

Proper cabling is essential for organization, airflow, and maintenance. Modern network racks often house PoE++ switches, Wi-Fi 7 access points, and high-speed uplinks, requiring Cat6A cabling for multi-gigabit connections and SFP+/DAC or fiber for switch-to-switch links. Key practices include: Patch Panel → 1U Cable Manager → Switch layout for neat routing.

Loose bundling of cables to prevent overheating, especially with high-power PoE devices. Labeling both ends of each cable with unique IDs for easier troubleshooting. Use Velcro straps, cable trays, and hooks to maintain organization and prevent tangles.

Ensure rack depth and U-space accommodate equipment and allow airflow; plan for 30% extra U-space. Network racks are typically 19 inches wide, with heights ranging from 24U to 48U, and can be floor-standing or wall-mounted. Hybrid racks combining server and network equipment are common in small to medium businesses.

Cost Considerations

The cost of cabling and rack installation depends on equipment type, cable complexity, labor, and infrastructure: Basic cable management (trays, ties): $200–$1,000 per rack. Advanced rack-mounted cable management: $1,000–$3,000 per rack. Network wiring installation: $2,500–$6,000 or more, influenced by cable length, number of ports, plenum requirements, and labor.

Power and cooling: PDUs ($200–$1,500), UPS ($1,000–$10,000), and cooling systems ($500–$5,000) per rack. Labor costs: $50–$200 per hour; medium-sized setups may cost $5,000–$20,000 for installation. For a small data center (10–20 racks), total costs can range from $50,000 to $100,000, while medium setups (50–100 racks) may cost $200,000–$500,000.

High-density or custom racks increase costs further.

Best Practices

Test all connections and verify thermal performance before final deployment. Use appropriate cable types: Cat6A for high-speed devices, Cat6 for standard 1Gbps connections, and plenum-rated cables in air-handling spaces. Integrate cooling and power efficiently to prevent overheating and downtime.

Plan for future growth by leaving extra U-space and modular cable management options. By following these guidelines, you can ensure a reliable, scalable, and maintainable network rack while accurately budgeting for both materials and labor.
