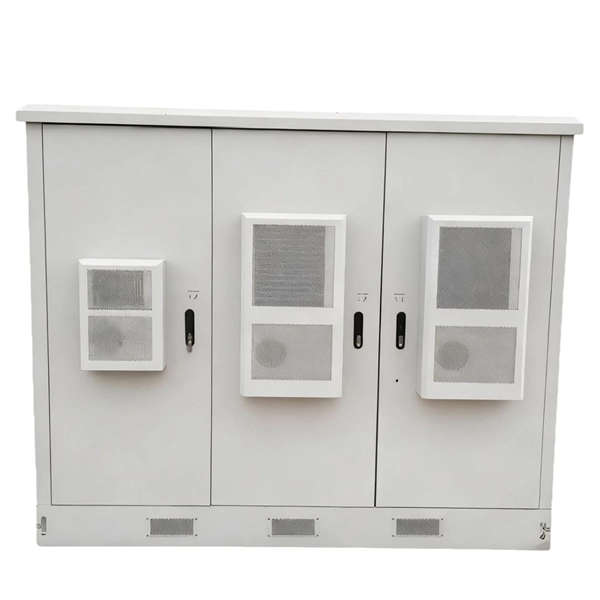

High-voltage distribution box disassembly process

Disassembling high-voltage distribution boxes requires strict adherence to safety protocols, proper PPE, and systematic step-by-step procedures to prevent electrical hazards and equipment damage.

Safety Precautions

Before starting, ensure the following safety measures: De-energize the system: Confirm that the box is completely powered down and verify with a voltage tester. Never assume it is safe without double-checking. Personal Protective Equipment (PPE): Use 1,000V+ insulated gloves, safety goggles, flame-resistant clothing, and insulated tools.

Danger notices: Display “Danger Live Equipment” signs if other personnel are nearby. Work area preparation: Ensure adequate lighting, clear space, and stable surfaces for tools and components.

Step-by-

Step Disassembly

Initial Inspection: Examine the box for modifications, damaged components, or unusual sounds (e.g., humming) that may indicate residual voltage or faulty parts. Disconnect External Connections: Remove all input and output cables, ensuring that gland plates or connectors are compatible with removal. Remove Protective Covers: Carefully unscrew and lift covers, shielding, or panels to access internal components.

Avoid touching busbars or terminals directly. Module Removal: For battery or capacitor modules, follow the “egg carton” approach—remove one module at a time to prevent mechanical stress or short circuits. Busbar and Circuit Handling: Use insulated tools to detach busbars and connectors.

Avoid bending or forcing components, as they may be fragile and tightly packed. Component Labeling and Storage: Label each part and store in anti-static or insulated containers to prevent accidental contact or damage. Final Inspection: Check for residual charge using a multimeter and ensure all components are safely isolated before leaving the work area.

Tools and Equipment

Insulated screwdrivers and wrenchesVoltage tester/multimeterInsulated lifting tools for heavy modulesAnti-static mats and containers for sensitive components Best PracticesWork methodically: Treat the disassembly like a controlled operation, similar to disarming a high-risk device. Training and simulation: Use 3D system replicas or virtual disassembly practice to familiarize with the box layout before handling live components. Documentation: Record each step and component location for safe reassembly or maintenance reporting.

By following these procedures, technicians can safely disassemble high-voltage distribution boxes while minimizing the risk of electrical shock, thermal incidents, or component damage.
