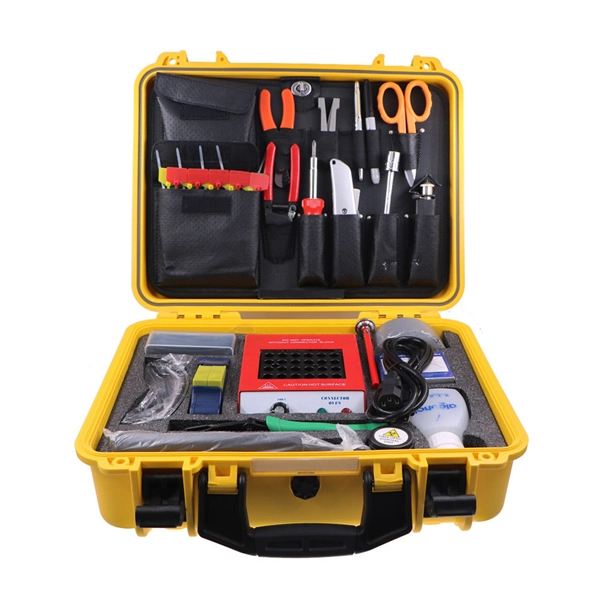

Full process of fiber optic terminal box wiring

Wiring a fiber optic terminal box involves mounting the box, routing and securing fibers, splicing or connecting pigtails, installing adapters, and performing post-installation checks to ensure signal integrity. Step 1: Pre-Installation PreparationSelect the appropriate box based on indoor/outdoor use, fiber count, and port capacity. Inspect the box for defects or damage and ensure all accessories (screws, cable ties, tubing) are available.

Plan fiber routing and slack management to avoid tight bends and maintain the minimum bend radius. Step 2: Mounting the Terminal BoxChoose a secure location that is accessible for maintenance and aligns with network requirements. Fix the box using screws, expansion anchors, or DIN rail mounts depending on the installation type.

Ensure the box is stable and level to prevent movement or stress on fibers. Step 3: Cable Entry and ManagementRoute incoming and outgoing fiber cables through designated entry points. Secure cables using clamps or cable ties to prevent strain on fibers.

Maintain proper bend radius and avoid stacking splices too tightly. Step 4: Splicing and ConnectorizationSplice fibers to pigtails using fusion splicing or mechanical splicing as required. Insert spliced fibers into splice trays for organized management.

Install adapters (SC, LC, FC, ST) to connect pigtails to jumpers or devices. Ensure proper alignment and secure connectors to prevent signal loss. Step 5: Labeling and DocumentationLabel each fiber and port clearly for future maintenance.

Record the fiber routing, splice points, and adapter connections in network documentation. Step 6: Post-Installation ChecksTest fiber continuity and signal quality using an optical power meter or OTDR. Verify that all fibers are properly secured, adapters are functional, and no excessive bending occurs.

Close the box and ensure it is sealed if outdoor-rated, or properly protected indoors. Following these steps ensures a reliable, organized, and maintainable fiber optic terminal box installation, minimizing signal loss and facilitating future network maintenance.
