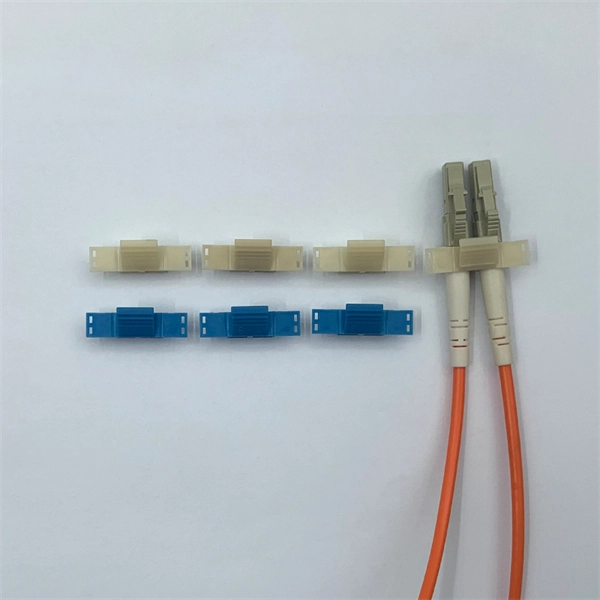

Single-mode optical module and multi-mode optical cable

Single-mode optical modules are generally not compatible with multimode optical cables due to core size and modal dispersion differences, which can cause significant signal loss and reduced performance. Core Differences and CompatibilitySingle-mode (SM) fibers have a small core diameter of about 9 µm, allowing light to travel in a single, straight path, which minimizes modal dispersion and supports long-distance transmission over kilometers. Multimode (MM) fibers, in contrast, have larger cores (50 µm or 62.

5 µm) that support multiple light paths, making them suitable for short-distance links but prone to modal dispersion over longer distances. Using a single-mode transceiver with multimode fiber can result in poor coupling efficiency, high attenuation, and unreliable signal transmission because the laser light from SM modules is highly focused and does not spread to fill the larger MM core effectively. Wavelength and Signal ConsiderationsSingle-mode modules typically operate at 1310 nm or 1550 nm, optimized for long-reach transmission, while multimode modules often use 850 nm (VCSEL-based) for short-range links and sometimes 1310 nm for medium-range links.

Mismatched wavelengths between SM modules and MM fiber can further degrade signal quality, limiting the achievable distance to just a few meters in practice, far below the intended reach of either technology. Practical ImplicationsShort-term or emergency use: Some network engineers may attempt to connect SM modules to MM fiber for very short distances, but this is not recommended for production networks due to high signal loss and potential errors. Hybrid solutions: A more reliable approach is to use mode-conditioning patch cables, which allow a single-mode laser to launch into multimode fiber with reduced modal dispersion, typically for legacy data-center upgrades.

Cost and future-proofing: Multimode modules are cheaper and easier to deploy for short distances, while single-mode modules are preferred for long-haul, DWDM, or future-proof backbone links.

Deploying S

M modules over MM fiber without proper conditioning can negate these advantages.

Recommendations

Match fiber type to module type: Use single-mode modules with single-mode fiber and multimode modules with multimode fiber for optimal performance. Use mode-conditioning cables if necessary: Only for short-term or transitional setups where SM modules must interface with MM fiber. Plan for long-term scalability: If future network expansion is expected, consider installing single-mode fiber for backbone links while using multimode fiber for short intra-building connections.

In summary, single-mode optical modules are not designed for multimode optical cables, and using them together without proper adaptation can lead to significant signal degradation. For reliable network performance, it is best to match the module type to the fiber type or use specialized mode-conditioning solutions for limited scenarios.
