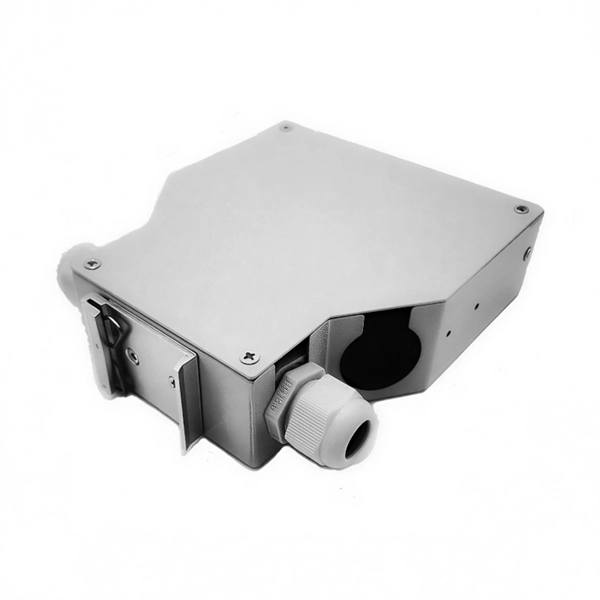

Current Standard for Explosion-proof Distribution Boxes

Explosion-proof distribution boxes must comply with international and national standards such as ATEX, IECEx, NEMA, and GB7251, ensuring safe operation in hazardous environments. Certification StandardsExplosion-proof distribution boxes are required to meet certifications like ATEX, IECEx, and NEMA, which validate their suitability for hazardous locations containing flammable gases, vapors, or combustible dusts. These certifications define the protection type, such as Ex d (flameproof) or Ex i (intrinsically safe), and classify the equipment for specific zones or divisions (e.g., Class I, Division 1, Zones 1 and 2) and groups (A, B, C, D for gases; E, F for dusts),.

Compliance ensures legal adherence and reduces the risk of ignition in explosive atmospheres.

Material and Construction Requirements

Materials must provide mechanical strength, corrosion resistance, and durability. Common choices include stainless steel (Baosteel 304 or higher), aluminum, and GRP. The enclosure thickness is typically not less than 4 mm for stainless steel, and the design must prevent sparks, contain internal explosions, and dissipate heat effectively.

Reinforced construction, high IP ratings, and proper insulation clearances are essential to maintain safety under normal and abnormal operating conditions. Design and Technical SpecificationsExplosion-proof distribution boxes must follow strict design and wiring standards: Electrical components must maintain adequate creepage and clearance distances and withstand voltage requirements. Wiring should use galvanized fasteners, black secondary wires, and proper casing sequencing.

Switch terminals must match wire cross-sections, and wiring should be neatly bundled and secured. Enclosures should be tested for pressure, temperature changes, vibration, and mechanical shocks to ensure long-term reliability.

Installation and Maintenance

Proper installation is critical. Boxes should be installed according to zone classification and protection type, using certified components and cable glands. Regular inspections are recommended at least once a year, with more frequent checks in high-risk areas to ensure seals, wiring, and components remain intact.

SummaryExplosion-proof distribution boxes are essential for safe power distribution in hazardous environments such as coal mines, petrochemical plants, and textile industries. Compliance with ATEX, IECEx, NEMA, and national standards like GB7251, combined with robust materials, reinforced construction, and proper installation, ensures worker safety, legal compliance, and mitigation of explosion risks.
