How to connect a pigtail to an optical fiber cable

Yes, a fiber optic pigtail can be connected to an optical fiber cable, typically through fusion or mechanical splicing. What a Fiber Optic Pigtail IsA fiber optic pigtail is a short length of optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs into equipment, an optical distribution frame (ODF), or a patch panel, while the bare end is designed to be permanently joined to an incoming fiber cable in the field.

How Pigtails Connect to Fiber Cables

The bare end of the pigtail is spliced to the optical fiber cable using either: Fusion splicing: The fibers are precisely aligned and fused together using heat, creating a low-loss, permanent joint. Mechanical splicing: The fibers are aligned and held together in a mechanical fixture, which is faster but may have slightly higher loss than fusion splicing. This method allows the precision of factory-polished connectors to be combined with the flexibility of field termination, ensuring minimal signal loss and high reliability.

Advantages of Using PigtailsLow-loss connections: Factory-polished connectors reduce insertion loss and back reflection compared to field-terminated connectors. Flexibility: Pigtails allow for custom-length splicing in the field without pre-terminating the main cable. Ease of maintenance: The connectorized end can be easily plugged into patch panels or equipment, while the spliced end is protected in a splice tray.

Practical Applications

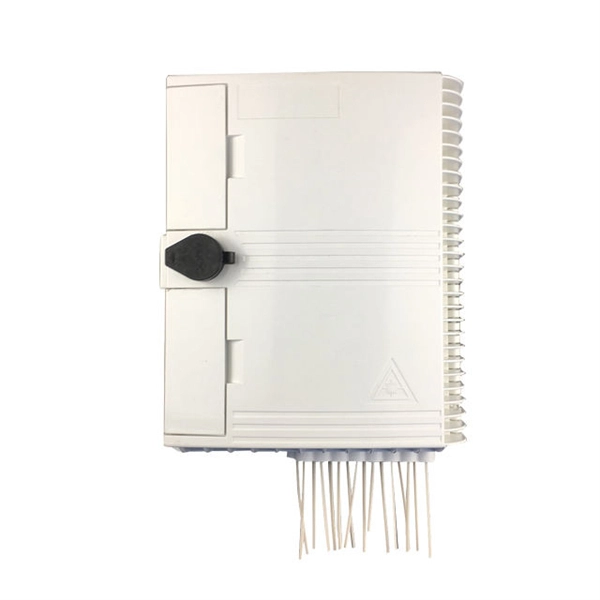

Pigtails are commonly used in: Optical distribution frames (ODFs)Fiber terminal boxesDistribution boxesFTTH (Fiber to the Home) drop cablesData centers and LAN/WAN networks In summary, pigtails are specifically designed to connect to optical fiber cables, providing a reliable, low-loss interface between the main fiber run and network equipment. Proper splicing techniques and high-quality pigtails ensure optimal network performance.
