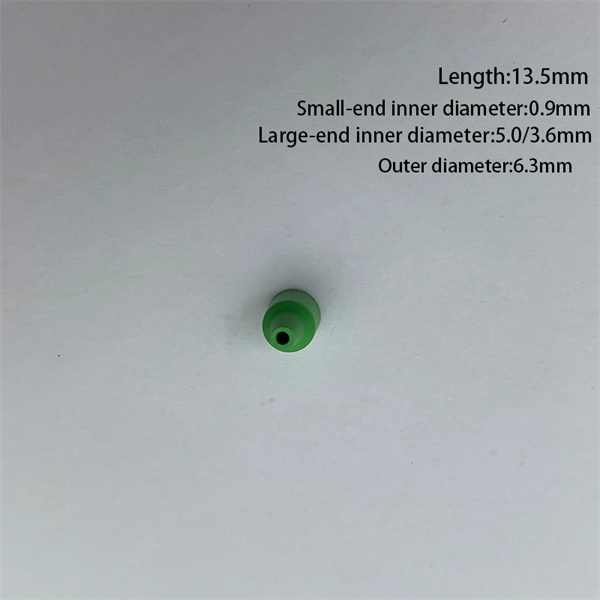

Fiber Optic Sensor Reflectivity

Reflectivity in fiber optic sensors determines how much light is returned from a target, directly influencing detection accuracy, sensitivity, and fault localization.

Principles of Reflective Fiber Optic Sensors

Reflective fiber optic sensors operate by transmitting light from a source, typically an LED or laser, through a fiber optic cable toward a target and measuring the light reflected back to the receiving fiber or sensor head. The amount of reflected light depends on the target's surface properties, including material, texture, and angle, as well as the sensor configuration. Specular reflection occurs on smooth surfaces where the angle of incidence equals the angle of reflection, while diffuse reflection occurs on rough surfaces, scattering light in multiple directions.

Sensor Configurations and Reflectivity

Reflective fiber optic sensors can be designed with different fiber arrangements: Random fiber patterns: High displacement sensitivity but short measurement range. Hemispherical fiber distribution: Long range but lower sensitivity. Concentric transmit-receive fibers: Balanced sensitivity and range, less affected by target tilt.

These configurations influence how efficiently reflected light is captured, which is critical for accurate measurement of displacement, vibration, or surface conditions.

Reflectivity Estimation in Fiber Networks

In optical fiber networks, reflectivity is also used to detect faults such as connector issues, splices, or fiber breaks. Techniques like Optical Time Domain Reflectometry (OTDR) measure the amplitude of backscattered light along the fiber to locate reflective events. Advanced methods, including model-based signal processing with Fiber Bragg Grating (FBG) arrays, estimate reflectivity using parametric transfer matrix models, allowing precise detection of small reflections and improving spatial resolution.

These approaches are essential for monitoring low-reflectivity targets or subtle faults in large-scale fiber systems.

Practical Considerations

Target material: Metals, glass, plastics, and even liquids can be detected, but low-reflectivity materials like rubber or sponges may require increased light intensity. Distance sensitivity: The sensor's output voltage is highly sensitive to small changes in distance when the probe is close to the target, defining the “front slope” of the performance curve. Environmental robustness: Fiber optic sensors are resistant to temperature, vibration, and electromagnetic interference, making them suitable for harsh industrial environments.

Applications

Reflective fiber optic sensors are widely used in: Industrial automation for position, displacement, and vibration measurement. Fault detection in optical networks, including PONs and long-haul fiber links. Distributed sensing with FBG arrays for temperature, strain, or bio-sensing applications.

Understanding and optimizing reflectivity is crucial for achieving high detection accuracy, fast response times, and reliable operation in both sensing and network monitoring applications.
